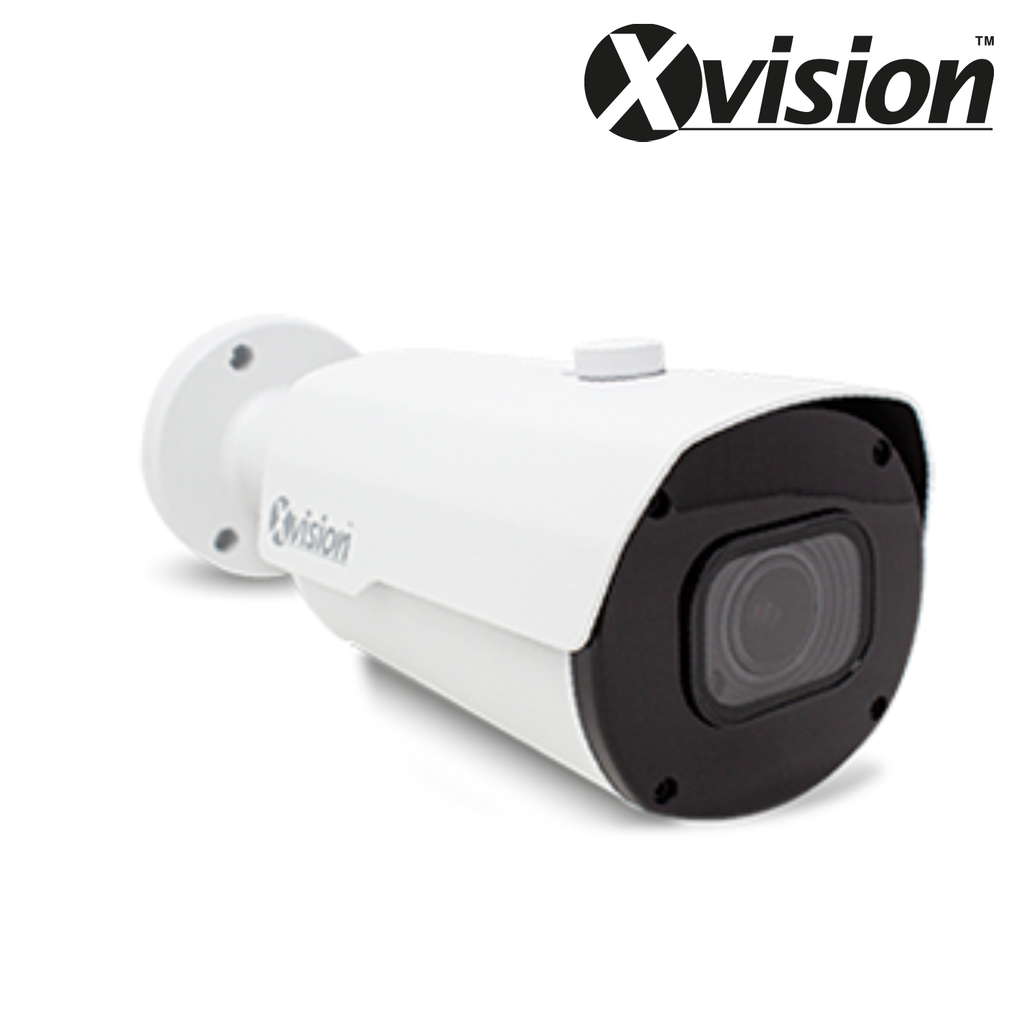

XVISION®│X4C5000BM-W-2N│3 YR WTY. 5MP Pro Bullet IP CCTV Camera
This 5MP Pro Bullet IP CCTV Camera features a 2.7-13.5mm (31-102°) Motorised AutoFocus Lens, Starlight, 60m Smart IR Night Vision, and is suitable for both indoor and outdoor use. With ONVIF and PoE (Power Over Ethernet) or Powerline compatibility, plus vandal-resistant construction, it is backed by a 3 year warranty.
- 5MP Imaging Sensor providing over 2x the resolution of equivalent 2MP cameras. Ideal for applications requiring higher resolution images, offering the perfect balance between performance and price.
- 2.7 to 13.5mm Motorised Auto Focus Lens for adjustable viewing angles between 31° and 102° viewing angle, allowing you to select the perfect viewing angle for your application. The viewing angle can be adjusted from an Xvision NVR and from the XIQ Mobile CMS APP connected to a Xvision NVR or the camera directly.
- 60m IR Night Vision for clear images even in complete darkness.
- Starlight Super Low light Imaging Sensor for clear images in Colour at light levels down to 0.005 Lux
- The camera features a 3-axis adjustment for flexible mounting on a wall or ceiling. A range of brackets offering additional mounting options are available as accessories.
Specifications
Style |
Pro Bullet Camera |
Weather Resistant |
Yes (IP66) |
Vandal Resistant |
Yes |
Mounting Type |
Wall or Ceiling |
Sensor |
1/2.7" Megapixel CMOS Sensor |
On Board Camera Functions |
On Board Camera Functions: Automatic White Balance, Automatic Gain Control, Electronic Iris, DNR, 120dB WDR, Starlight, Backlight Compensation, Privacy |
Resolution |
5MP |
Lens Type |
Motorised Auto Focus |
Lens Size |
2.7-13.5mm |
Viewing Angle |
31-102° |
Night Vision |
60m |
Minimum Illumination |
0.005 Lux |
Video Compression |
H265+ |
Video Streams |
Dual Stream |
Video Resolution & Frame Rates |
2592x1944 – 20fps 2592x1520 – 20fps 2304x1296 – 25fps 2048x1535 – 25fps 1920x1080 – 25fps 1280x720 – 25fps |
Video Bitrate |
256Kbps - 8Mbps |
Network Connection |
RJ45 Socket (10/100) |
Network Protocols Supported |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
Onvif |
Yes |
Power Over Ethernet (PoE) |
Yes |
Power Consumption |
9.5 Watts |
Audio Input |
Yes - 1x RCA Input, 1x RCA Output |
Power Input |
DC 12V Socket (2.1mm) or PoE |
On Board Recording |
Yes – Micro SD Card (Max 128GB) |
Alarm Input |
Yes - Alarm Input/Output |
Video Analytics |
No |
Operating Temperature |
-30 ~ 55° |
Dimensions (WHD) |
∅148.7 x 109mm |
Weight (kg) |
0.78kg |
Warranty |
3 Year Warranty |
Datasheet

Calculate your recording time based on model, number of cameras, resolution and detection capabilities
