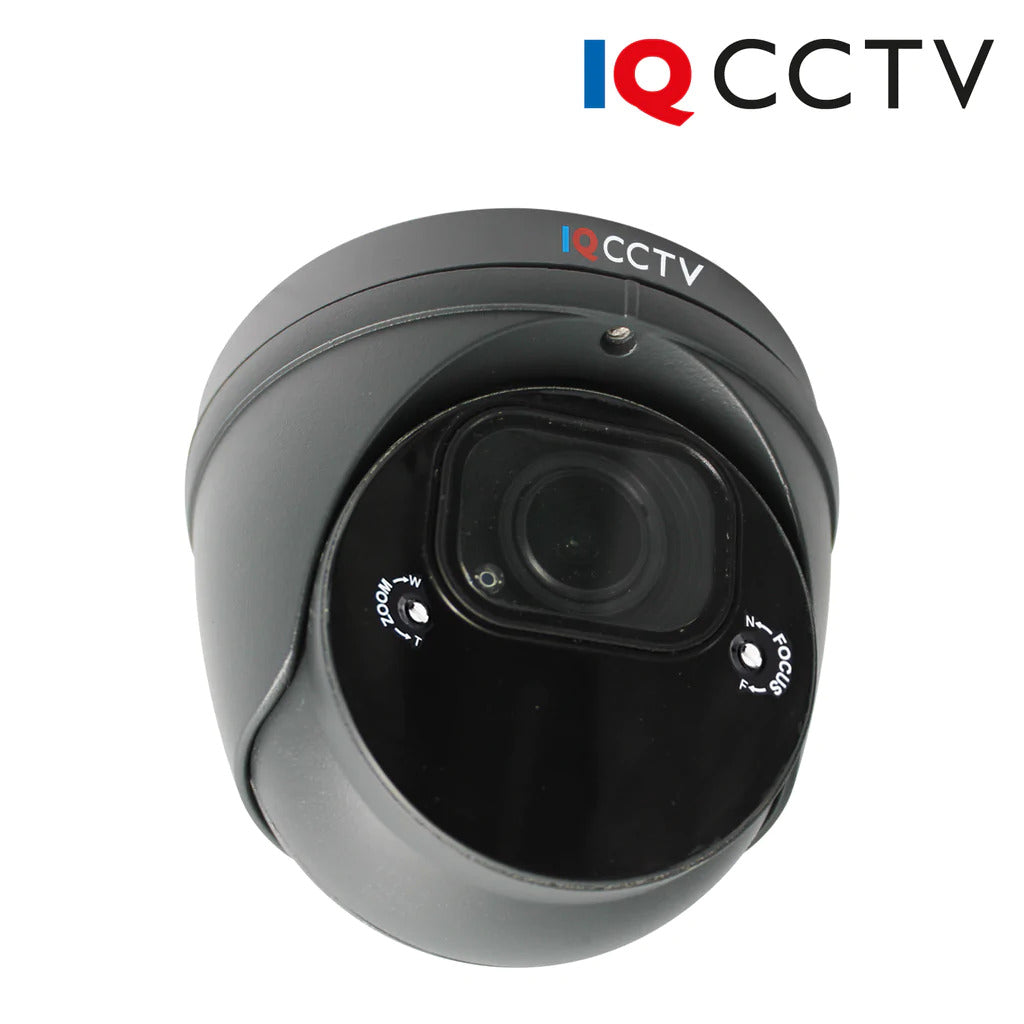

The IQC8000VV-G 4K Pro Dome camera has a 2.7 to 13.5mm (32-111°) manually adjustable lens, Starlight capability for colour images in low light, 60m Smart IR Night Vision for viewing in complete darkness and AHD, HD-TVI, HD-CVI or CVBS output. The camera is suitable for indoor or outdoor use and has a 2 Year Warranty.
Features
- 8MP (4K) Imaging Sensor for applications requiring the highest resolution images, where performance takes priority over price.
- Supports Analogue AHD/HD-TVI/HD-CVI output at 5MP or CVBS at 960H resolution (Default mode is AHD, built in dip switches allow for easy switching of formats)
- 2.7 to 13.5mm Varifocal Lens for adjustable viewing angles between 30° and 113° viewing angle, allowing you to select the perfect viewing angle for your application.
- 60m Smart IR Night Vision which ensures brightness uniformity in low illumination and adjusts to the intensity of the camera's infrared LEDs, to compensate for the distance of an object, preventing the infrared LEDs from over-exposing objects close to the camera.
- Starlight Super Low light Imaging Sensor for clear images in Colour at light levels down to 0.05 Lux
- The camera can be used inside or outside and is IP66 rated.
- The camera features a 3-axis adjustment for flexible mounting on a wall or ceiling. A range of brackets offering additional mounting options are available as accessories.
Specifications
Style |
Turret Dome Camera |
Weather Resistant |
Yes (IP66) |
Vandal Resistant |
Yes |
Mounting Type |
Wall or Ceiling |
Sensor |
1/2.7" CMOS Megapixel Sensor |
DSP Functions |
Automatic Back-Light Compensation, Automatic White Balance, DWDR |
Video Formats Supported |
AHD, HD-TVI, HD-CVI, CVBS |
Resolution |
8MP (4K) |
Lens Type |
Varifocal |
Lens Size |
2.7-13.5mm |
Viewing Angle |
32-111° |
Night Vision |
60m Smart IR |
Minimum Illumination |
0.05 Lux |
Operating Voltage |
12V DC |
UTC Support |
Yes |
Video Output |
BNC Socket |
Audio Output |
No |
Power Input |
DC Socket (2.1mm) |
RS485 Control |
No |
Operating Temperature |
-30 - 55° |
Dimensions (WHD) |
Ø126 x 102.51mm |
Weight (kg) |
0.72 |
Warranty |
2 Year Warranty |
Datasheet

Calculate your recording time based on model, number of cameras, resolution and detection capabilities
