‹ XVISION® ACCESSORIES

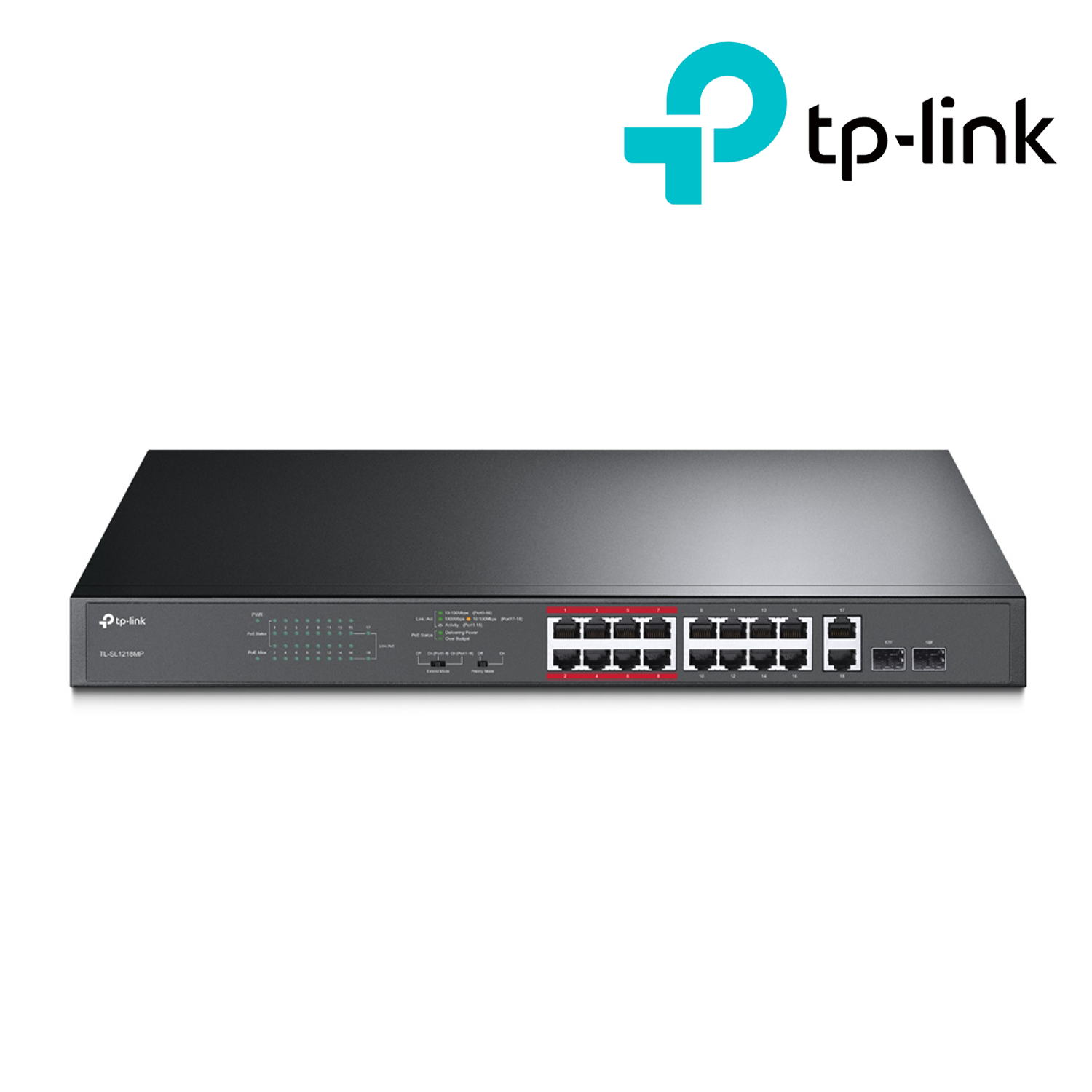

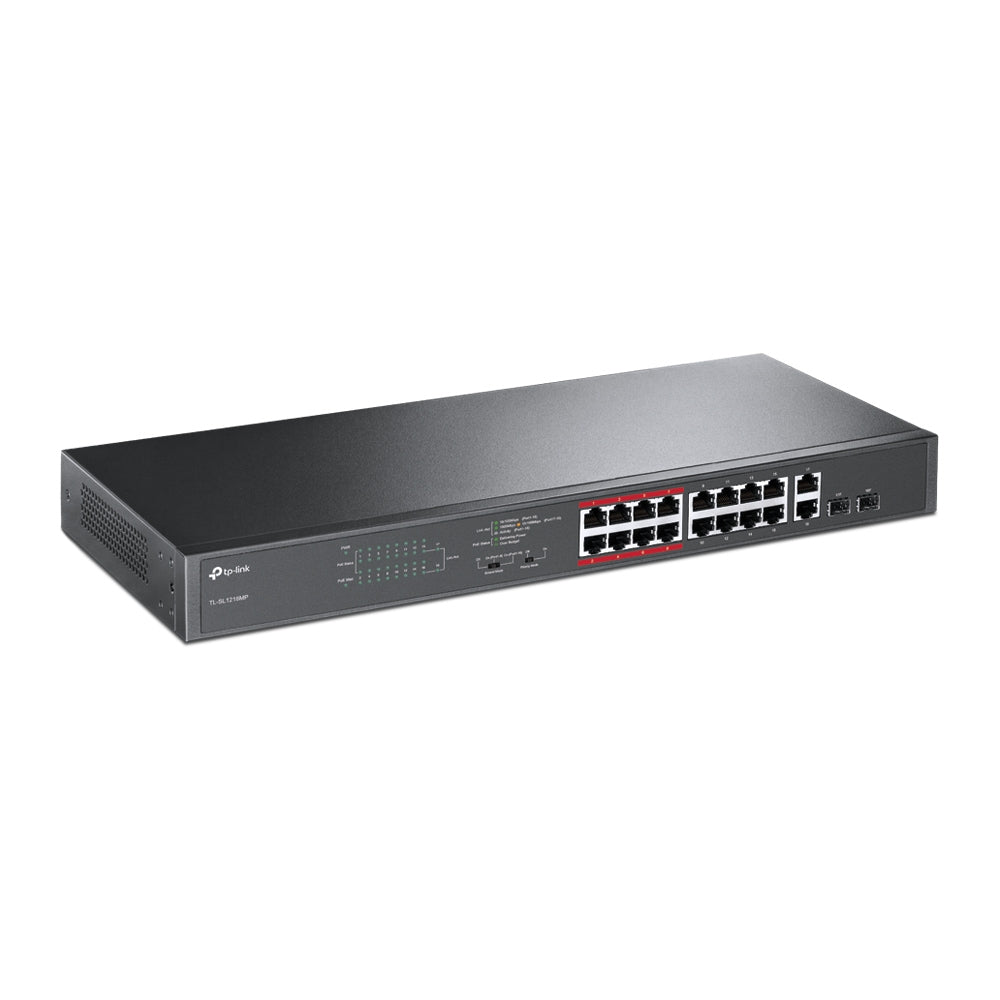

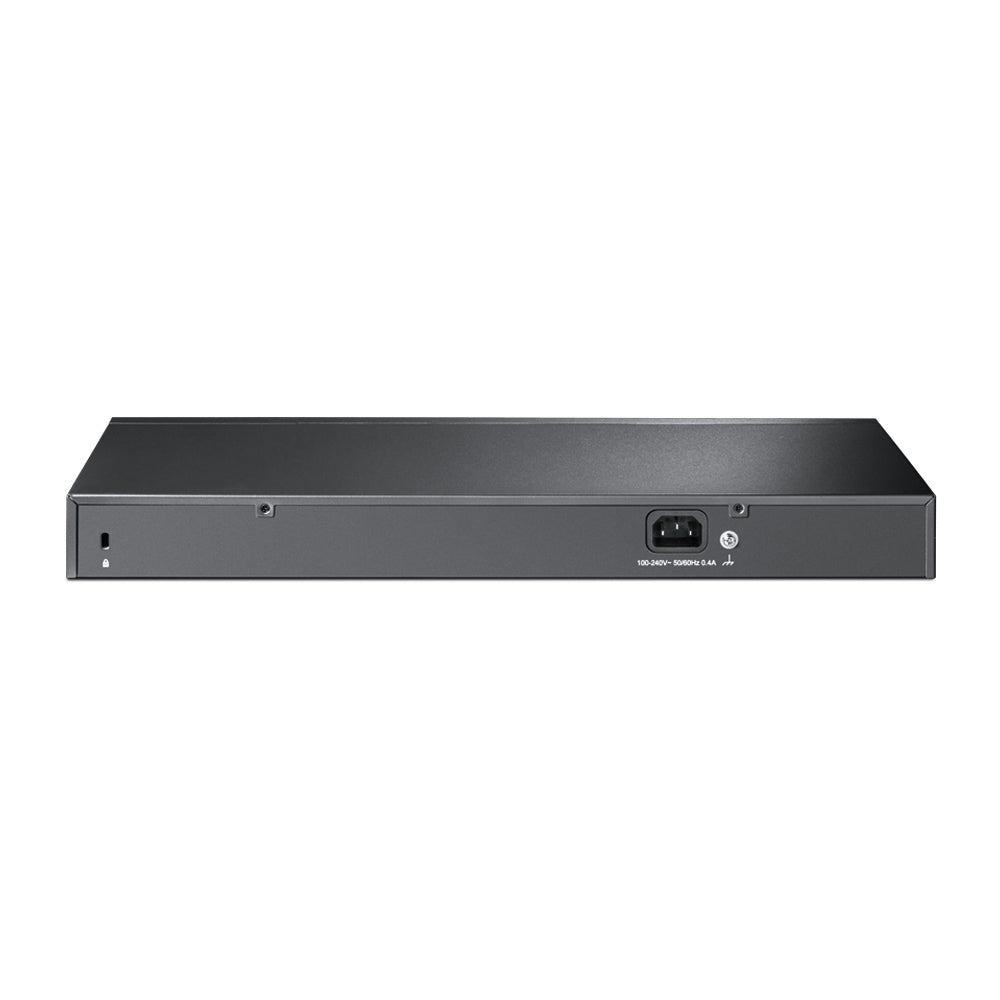

Y3K®│TL-SL1218MP│1 YR WTY. 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

SKU:
TL-SL1218MP

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch offering up to 250m data/power transmission, port1-8 priority mode for quality sensitive applications, 30W/port & 192W total PoE power budget, no configuration/installation needed. *Special Order*; 3-5 days.



Features

  • Easy to Use PoE Switch with Innovative Design Up To 250m Data and Power Transmission for Surveillance - TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
  • High PoE Power Budget - TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
  • Video Quality Guaranteed - To guarantee the quality of sensitive applications like video monitor, TL-SL12128MP offers higher priority options for those IPC connected ports.

Specifications:

HARDWARE

Interface

16× PoE+ 10/100 Mbps RJ45 Ports
2× 10/100/1000 Mbps RJ45 Ports
2× Combo Gigabit SFP Slots

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity

2

Physical Security Lock

Yes

Power Supply

100-240 VAC, 50/60 Hz

Backup Bandwidth

7.2 Gbps

PoE+ Ports (RJ45)

Standard: 802.3at/802.3af compliant
PoE Ports: Port 1 – Port 16
PoE Power Budget: 192 W

Mac Address Table

8K

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Max Power Consumption

18.73 W (220/50 Hz. no PD connected)
217.22 W (220/50 Hz. with 192 W PD connected)

Max Heat Dissipation

63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192 W PD connected)

SOFTWARE FEATURES

Advanced Features

Compatible With IEEE 802.3at/af Compliant PDs
Extend Mode (Up to 250m PoE power supply and data transmission)
Priority Mode
Isolation Mode
PD Detection
Intelligent Power Supply
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control

Transmission Method

Store-And-Forward

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-SL1218MP
Power Cable
Installation Guide
Two mounting brackets and the fittings

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
