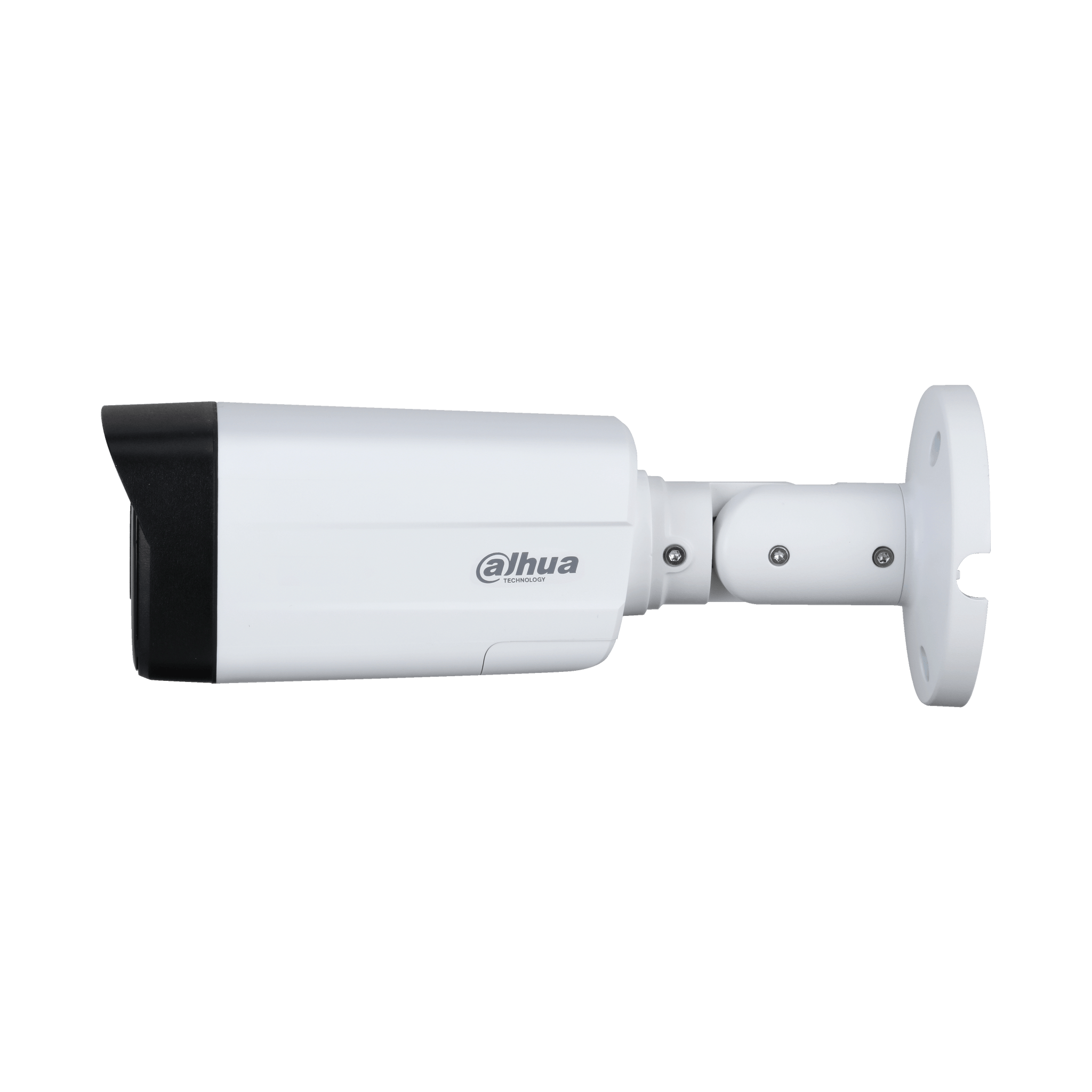

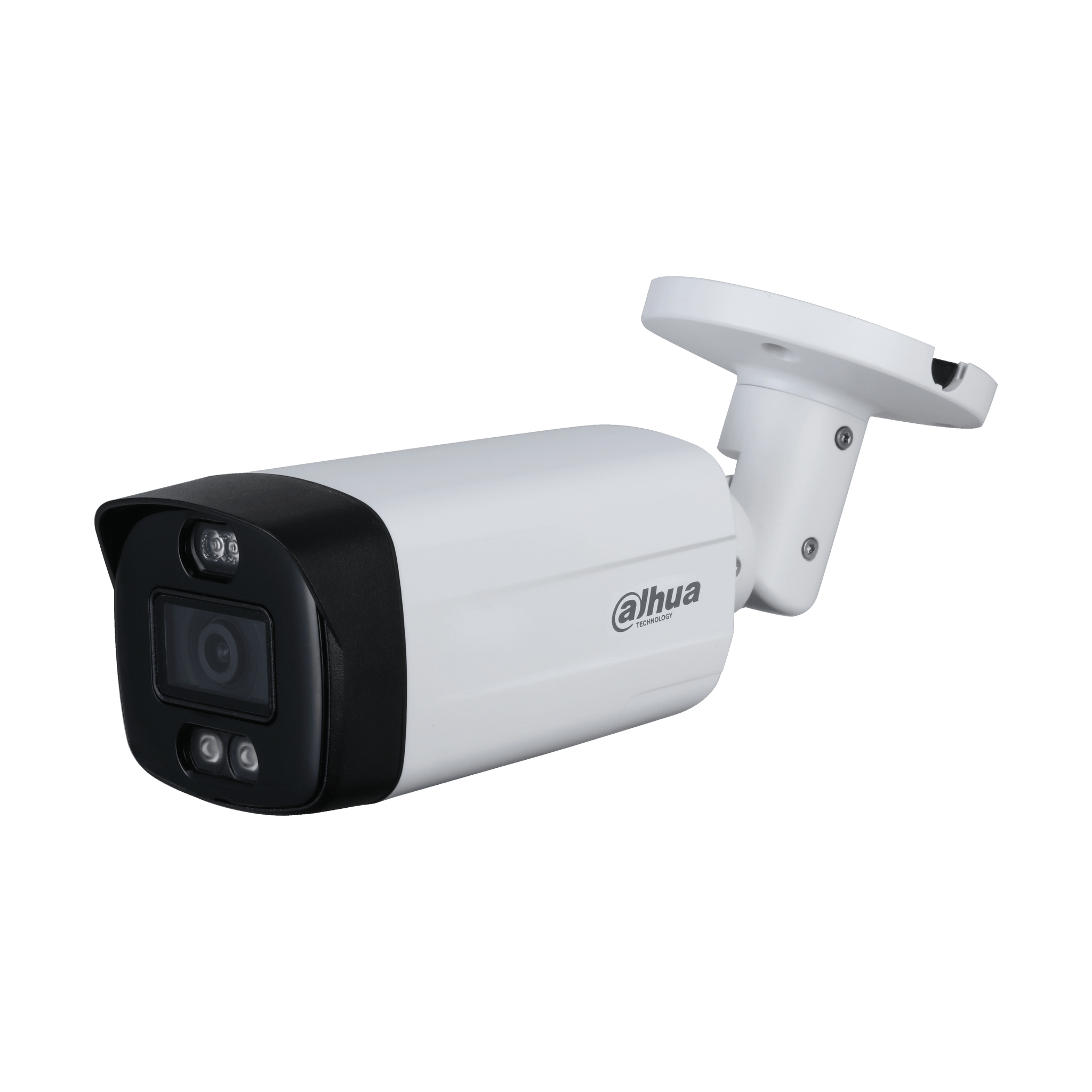

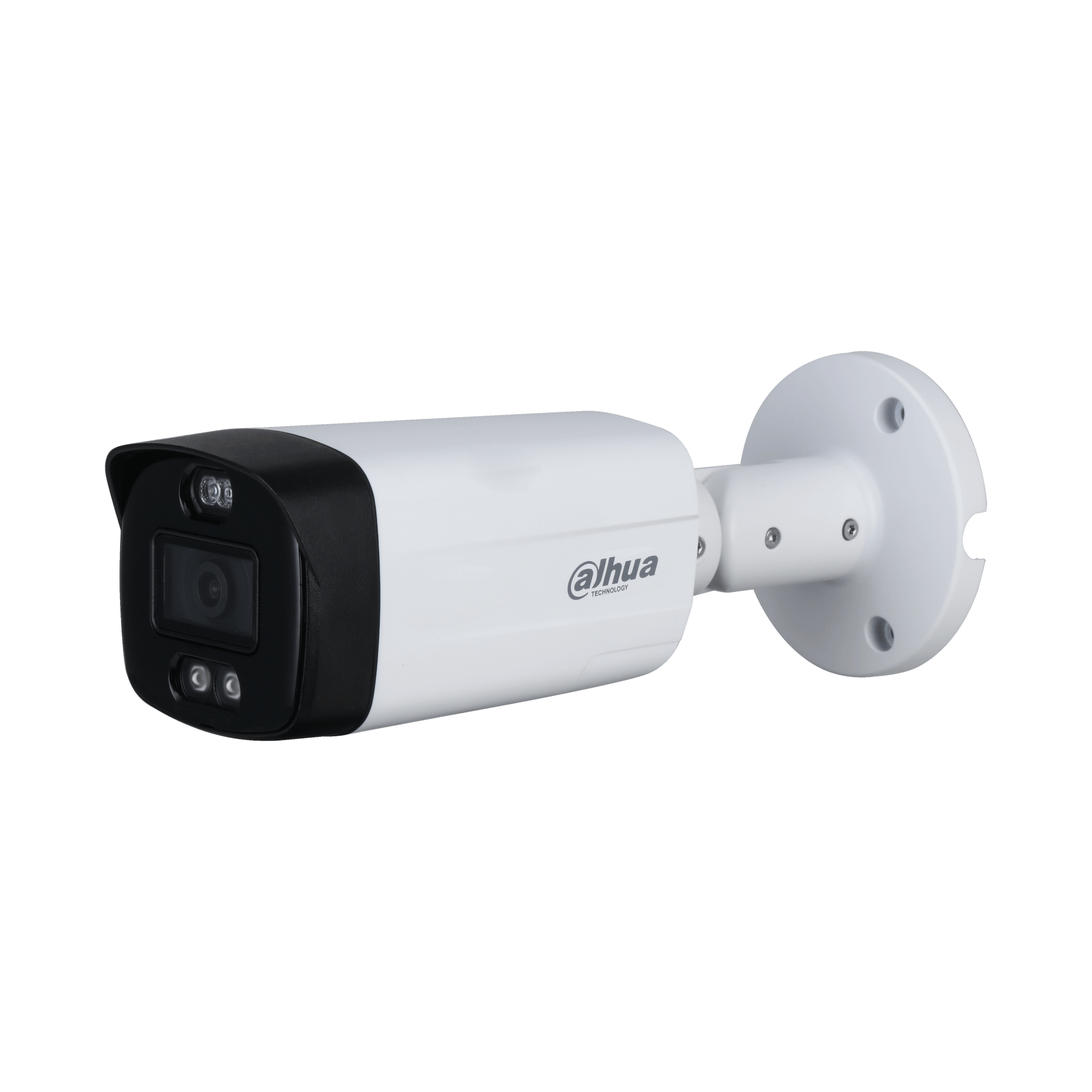

DAHUA®│HAC-ME1509THP-A-PV-0360B│3 YR WTY. 5MP HDCVI Full-Colour Active Deterrence Fixed Bullet Camera

  • Unit price per

This model supports active deterrence feature which warns off intruders with red blue light and siren even before users are aware of the incident. It is able to alert intruder accurately by SMD Plus or Perimeter Protection of XVR. This camera is an ideal choice for applications which require intrusion protect and video verification, such as courtyards, offices, warehouses, stores.



  • 4 Signals over 1 Coaxial Cable - HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, such as video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras.
  • Long Distance Transmission - HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m transmission for 5MP HD video over coaxial cable, and up to 300 m over UTP cable.* *Actual results verified by real-scene testing in Dahua's test laboratory.
  • Simplicity - HDCVI technology inherits the born feature of simplicity from traditional analogue surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analogue system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.
  • Active Deterrence - Active deterrence is to warn off intruders actively with red blue light and siren even before users are aware of the incidence. Once an intrusion is detected, the red blue light will flash and the siren will buzzer to alert the intruder. The content of siren is configurable.
  • Full-colour - The camera adopts F1.2 large aperture lens and 1/2.7" high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera can be able to present 24/7 coloured image that provides colour details to accurately identify people or objects in low light conditions.
  • Warm Supplemental lights - With two warm supplemental LED lights, the camera is able to provide a colourful and vivid image even in total darkness. It also provides visible by default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposure of the objects in the image centre. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu.
  • Protection - The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67, making it suitable for indoor or outdoor environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.


  • 24/7 colour imaging
  • Active deterrence with red blue light, siren and alarm out interface
  • Built-in mic
  • Max. 20 fps@5MP
  • 3.6 mm fixed lens
  • 40 m illumination distance
  • IP67, 12V±30% DC


DH-HAC-ME1509THP-A-PV-0360B Datasheet
