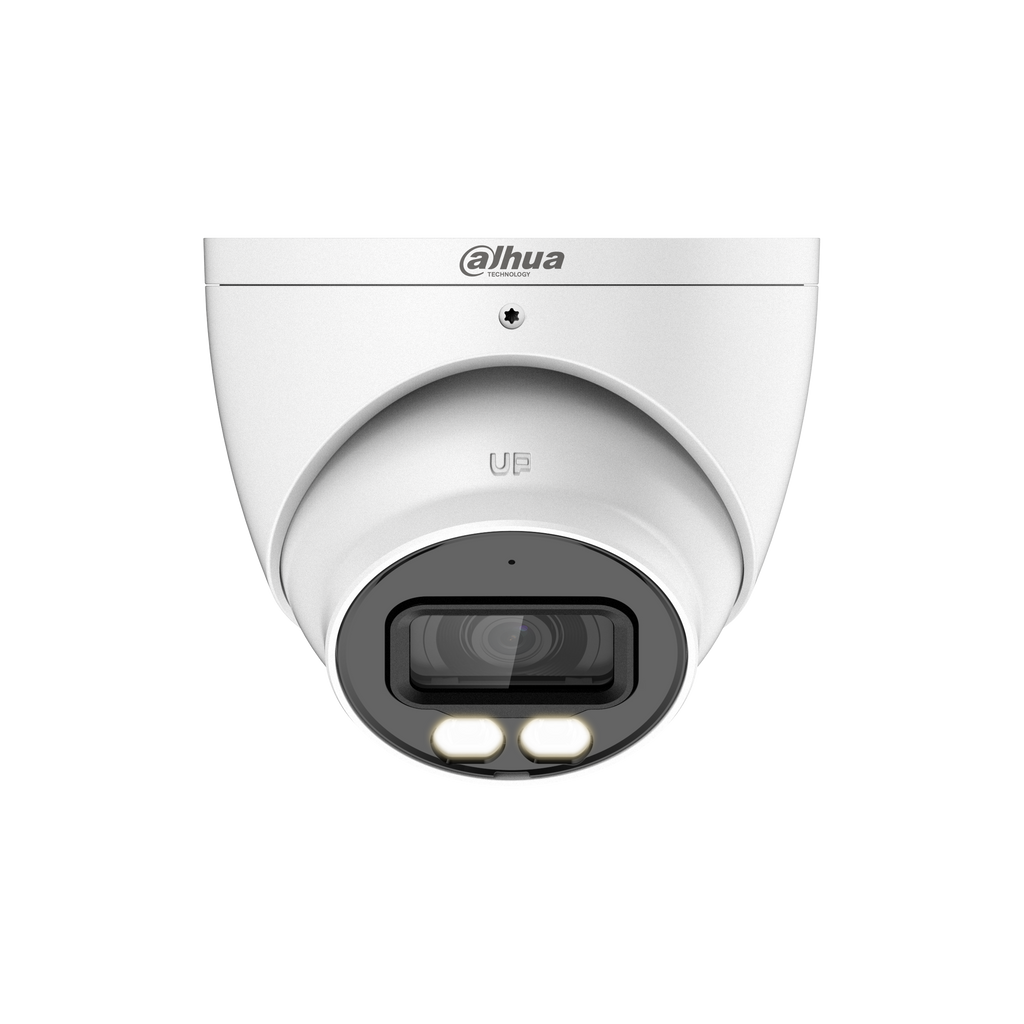

DAHUA®│HAC-HDW1509TP-IL-A-0280B-S2│3 YR WTY. 5MP Smart Dual Illuminators Eyeball Camera

  • Unit price per

The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-color and starlight, providing various solutions for different scenarios.



  • Smart Dual Illuminators - With its smart dual illumination mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in therule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR illuminator to significantly reduce light pollution.
  • Wide Dynamic Range - With its advanced Wide Dynamic Range technology (WDR), the camera captures highly detailed images and produces high-definition recordings in high-contrast lighting conditions, and in scenes with backlighting or shadows.
  • Broadcast-quality Audio - Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.
  • Super Adapt - With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
  • Advanced 3DNR - Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.
  • Protection (IP67, Wide Voltage) - IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes. Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.
  • 4 Signals over 1 Coaxial Cable - HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install. * Audio input is available for select HDCVI camera models.
  • Long Distance Transmission - HDCVI technology provides long distance transmission in real time without transmission loss. It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables. The results were obtained and verified through rigorous testing in Dahua's test laboratory.



  • Max 25 fps@5MP (16:9 video output).
  • 120 dB true WDR, 3D NR.
  • Smart Dual Illuminators.
  • 40 m illumination distance.
  • Super Adapt.
  • Built-in MIC.
  • 3.6 mm fixed lens (2.8 mm optional).
  • CVI/CVBS/AHD/TVI switchable.
  • IP67, 12 VDC.


DH-HAC-HDW1509TP-IL-A-0280B-S2 Datasheet
