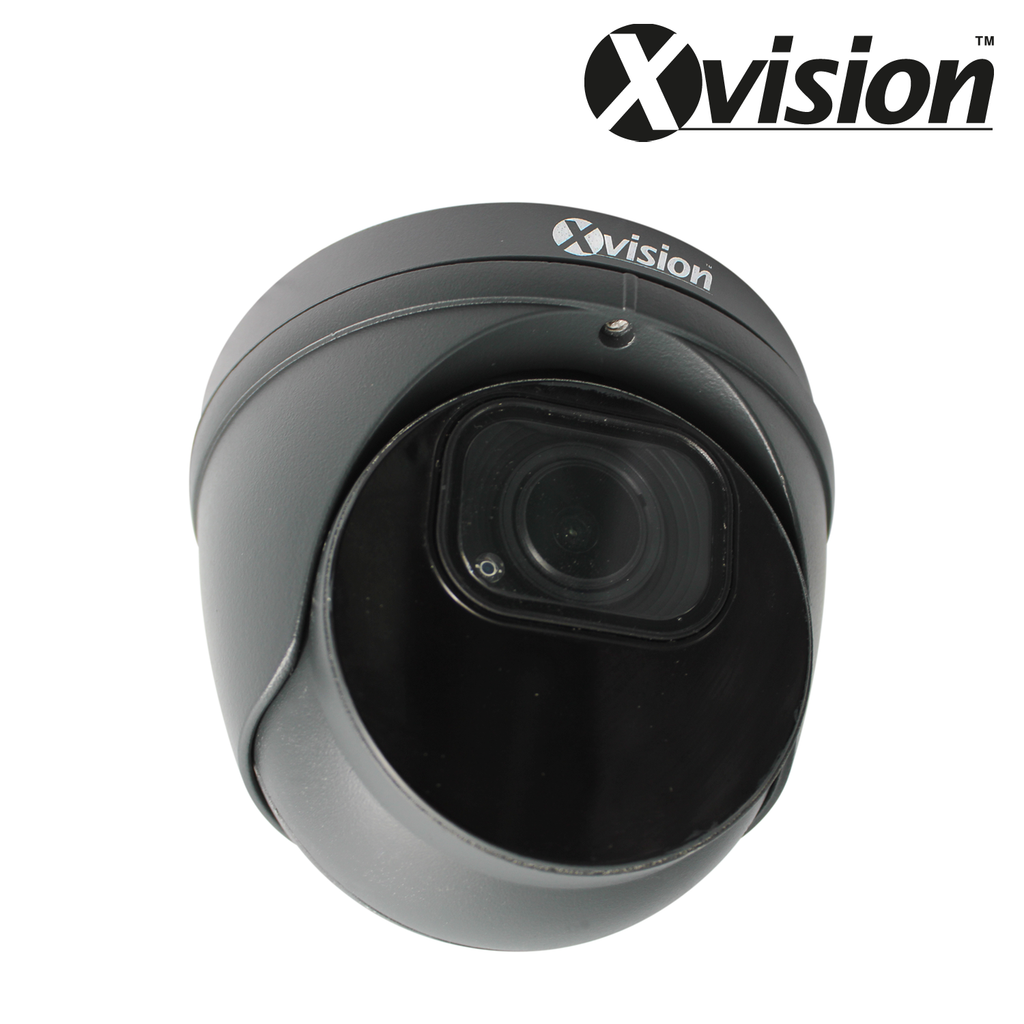

XVISION®│X5C5000VM-G-3│3 YR WTY. 5MP AI+BI Pro Dome - Grey IP CCTV Camera
This 5MP AI+BI Pro Dome Camera features a 2.7-13.5mm Motorised Auto Focus lens, Starlight Technology, 60m Smart IR Night Vision, Audio Input/Output, Alarm Input/Output, a built-in Micro SD Card Slot, 120dB Wide Dynamic Range, AI Video Analytics, and is suitable for both Indoor and Outdoor use, as well as supporting ONVIF and PoE or Powerline; all backed by a 3 Year Warranty.
Features
- 5MP Imaging Sensor providing over 2x the resolution of equivalent 2MP cameras. Ideal for applications requiring higher resolution images, offering the perfect balance between performance and price.
- 2.7 to 13.5mm Motorised Auto Focus Lens for adjustable viewing angles between 31° and 102° viewing angle, allowing you to select the perfect viewing angle for your application. The viewing angle can be adjusted from a Xvision NVR and from the XIQ Mobile CMS APP connected to a Xvision NVR or the camera directly.
- 60m Smart IR Night Vision which ensures brightness uniformity in low illumination and adjusts to the intensity of the camera's infrared LEDs, to compensate for the distance of an object, preventing the infrared LEDs from over-exposing objects close to the camera..
- Starlight Super Low light Imaging Sensor for clear images in Colour at light levels down to 0.005 Lux
- 120dB Wide Dynamic Range for clear viewing of foreground objects against bright backgrounds.
- Audio Input for recording sound
- Uses the latest AI Video Analytics technology to provide:
Perimeter Detection - Detects objects that cross and loiter trip-wires, providing AI enabled area/perimeter protection for minimised false alarms when compared to motion detectors and similar technology Line Crossing - Detects humans and vehicles that cross a pre-defined virtual line, providing AI enabled perimeter protection for high risk areas for instant notifications compared to standard motion detection or sensors
Stationary Object - Detects objects left over or lost in a pre-defined region which can pose a security risk to safety and can provide notifications
Pedestrian/Human Detection - Detects the movement of humans in a pre-defined area and provides notifications when the area is entered
Cross Counting - Counts the number of times moving objects or people cross virtual lines. Perfect in viewing traffic on walkways or in retail environments
Face Detection - Records and recognises authorised and unauthorised faces, and provides notification based on this. - The camera can be used inside or outside and is IP66 rated
- The camera features a 3-axis adjustment for flexible mounting a wall or ceiling. A range of brackets offering additional mounting options are available as accessories
Style |
Dome Camera |
Weather Resistant |
Yes (IP66) |
Vandal Resistant |
Yes |
Mounting Type |
Wall or Ceiling |
Sensor |
1/2.7" Megapixel CMOS Sensor |
On Board Camera Functions |
Automatic White Balance, Automatic Gain Control, Automatic Electronic Iris, DNR, 120dB WDR, Starlight, Backlight Compensation, Privacy |
Resolution |
5MP |
Lens Type |
Motorised |
Lens Size |
2.7-13.5mm |
Viewing Angle |
31-102° |
Night Vision |
60m Smart IR |
Minimum Illumination |
0.005 Lux |
Video Compression |
H265+ |
Video Streams |
Triple Stream |
Video Resolution & Frame Rates |
2592x1944 – 25fps 2592x1520 – 25fps 2304x1296 – 25fps 2048x1535 – 25fps 1920x1080 – 25fps 1280x720 – 25fps |
Video Bitrate |
8Kbps - 8Mbps |
Network Connection |
RJ45 Socket (10/100) |
Network Protocols Supported |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
Onvif |
Yes |
Power Over Ethernet (PoE) |
Yes |
Power Consumption |
9.5 Watts |
Audio Input |
Yes |
Power Input |
12V DC Socket (2.1mm) or PoE |
On Board Recording |
Yes – Micro SD Card (128GB Max) |
Alarm Input |
Yes - 1x Alarm Input/Output |
Video Analytics |
Yes - Perimeter Intrusion, Line Crossing, Stationary Object, Pedestrian Detection, Cross Counting, Face Detection |
Operating Temperature |
-30 ~ 55° |
Dimensions (WHD) |
Ø126x102.51mm |
Weight (kg) |
0.96 |
Warranty |
3 Year Warranty |
Datasheet

Calculate your recording time based on model, number of cameras, resolution and detection capabilities
