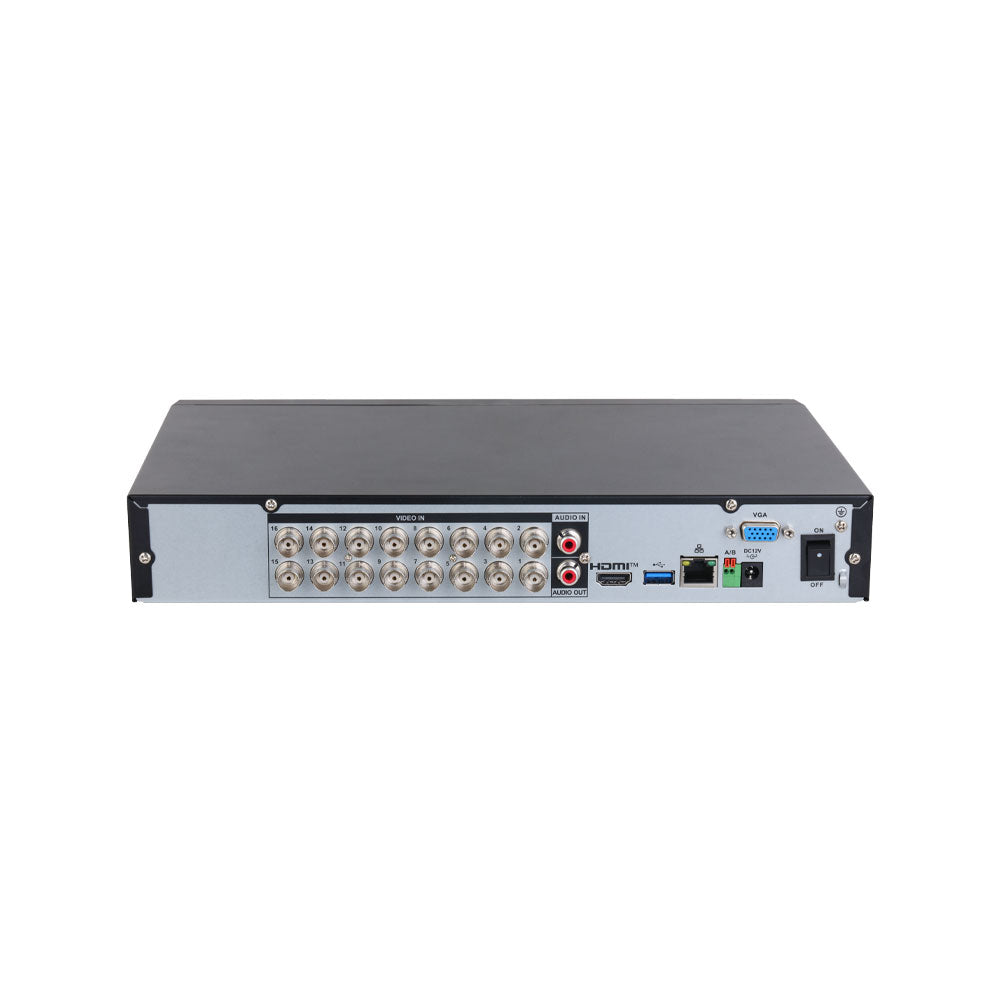

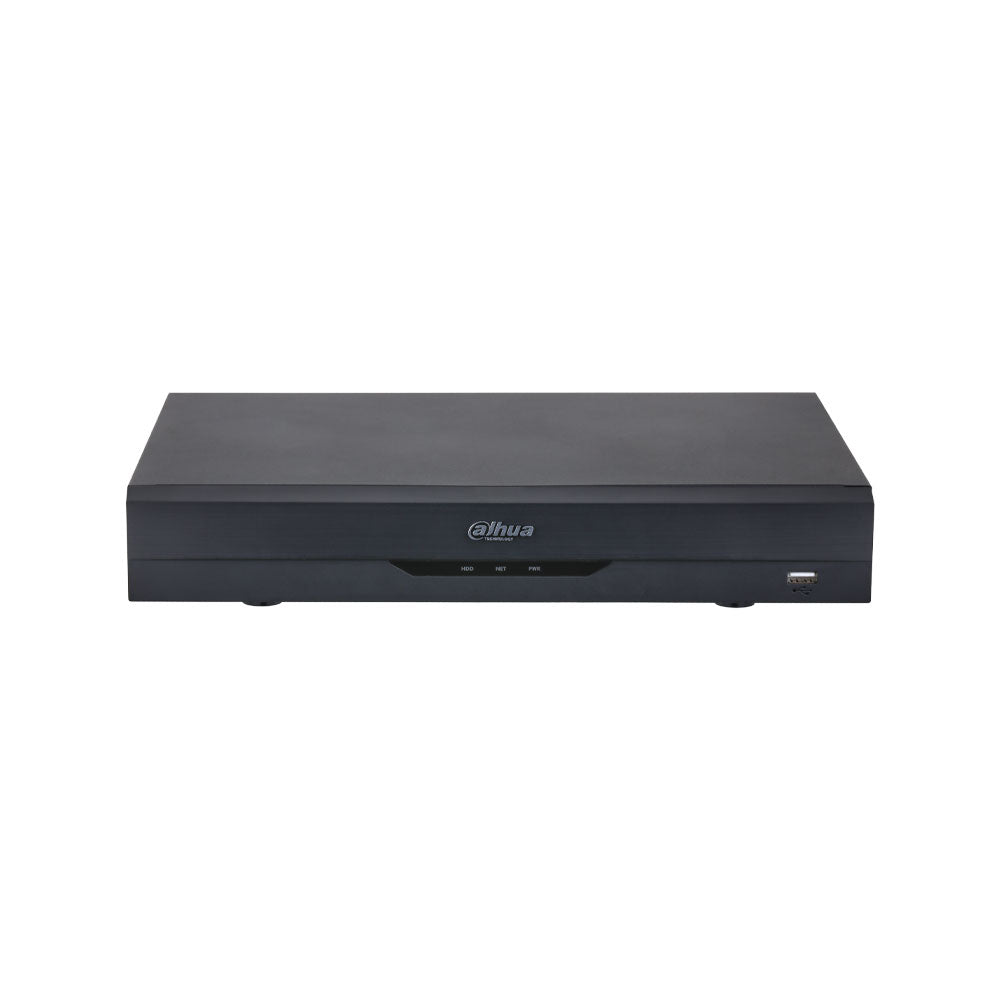

Dahua|DH-XVR5116H-4KL-I3/T|1 YR WTY. 16CH XVR5000 4KL I3 WizSense XVR (4K Value/5MP) *Special order. 3-5 days lead time

✔ H.265+ and H.265 ✔ Full channel AI Coding ✔ Up to 16CH SMD Plus (analogue) ✔ Up to 8CH perimeter protection (analogue) ✔ Up to 2CH face recognition (analogue) ✔ Up to 32CH IP input up to 8MP
SKU:
DH-XVR5116H-4KL-I3/T
Hard Drive:

Flexible penta‑brid recording for modern CCTV upgrades.

The Dahua DH-XVR5116H-4KL-I3/T is a penta‑brid XVR built to support mixed analogue and IP systems, helping you upgrade or replace recorders while keeping compatible cameras in place.

It combines efficient H.265 based compression with Dahua AI features (model dependent) to improve event relevance and reduce storage overheads.

Key Features

  • SMD Plus target filtering

    Filters motion events to focus on humans and vehicles on supported channels.

  • Perimeter protection

    AI tripwire and intrusion detection on supported analogue channels.

  • Face recognition

    Face comparison on supported analogue channels.

  • AI Coding

    Optimises encoding to save storage and bandwidth while maintaining target detail.

  • H.265 compression

    H.265 based compression support to reduce storage and bandwidth usage.

  • Penta‑brid input support

    Supports HDCVI, AHD, TVI, CVBS and IP video inputs.

Key Specifications

  • Supports H.265+ and H.265 dual stream video compression
  • Supports Full channel AI Coding
  • Supports HDCVI, AHD, TVI, CVBS and IP video inputs
  • Max 32 channels IP camera inputs, each channel up to 8MP; max 128 Mbps incoming bandwidth
  • Up to 16 channel SMD Plus for analogue channels
  • Up to 8 channel perimeter protection for analogue channels
  • Up to 2 channel face recognition for analogue channels

Datasheet

DH-XVR5116H-4KL-I3/T
