‹ VESTA® Detectors – PIR + Camera

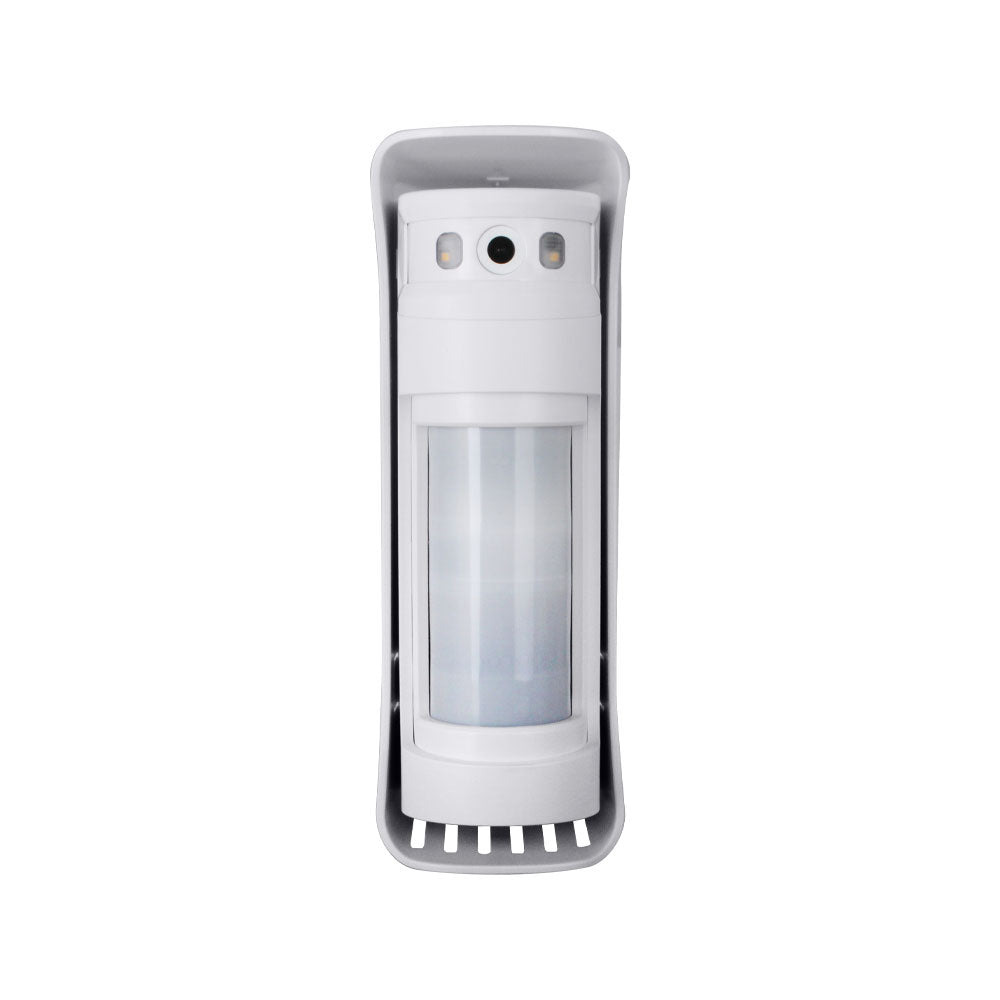

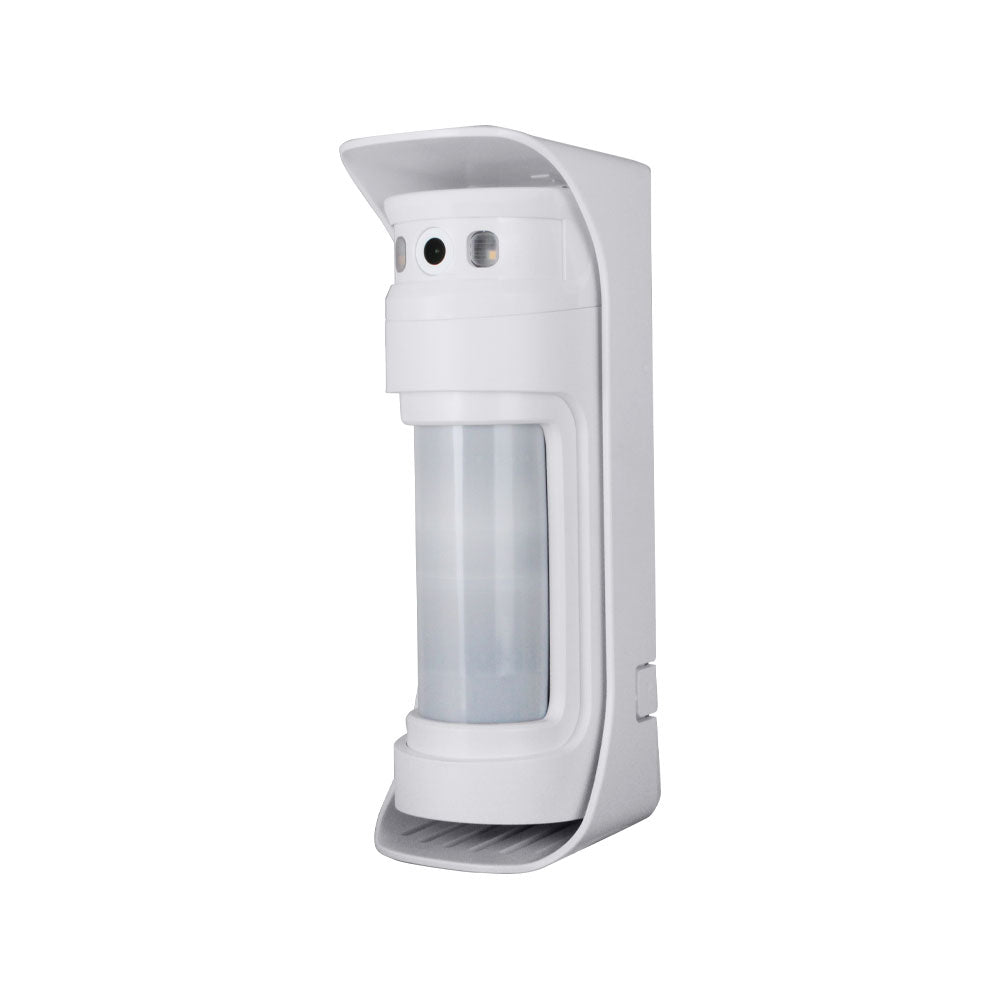

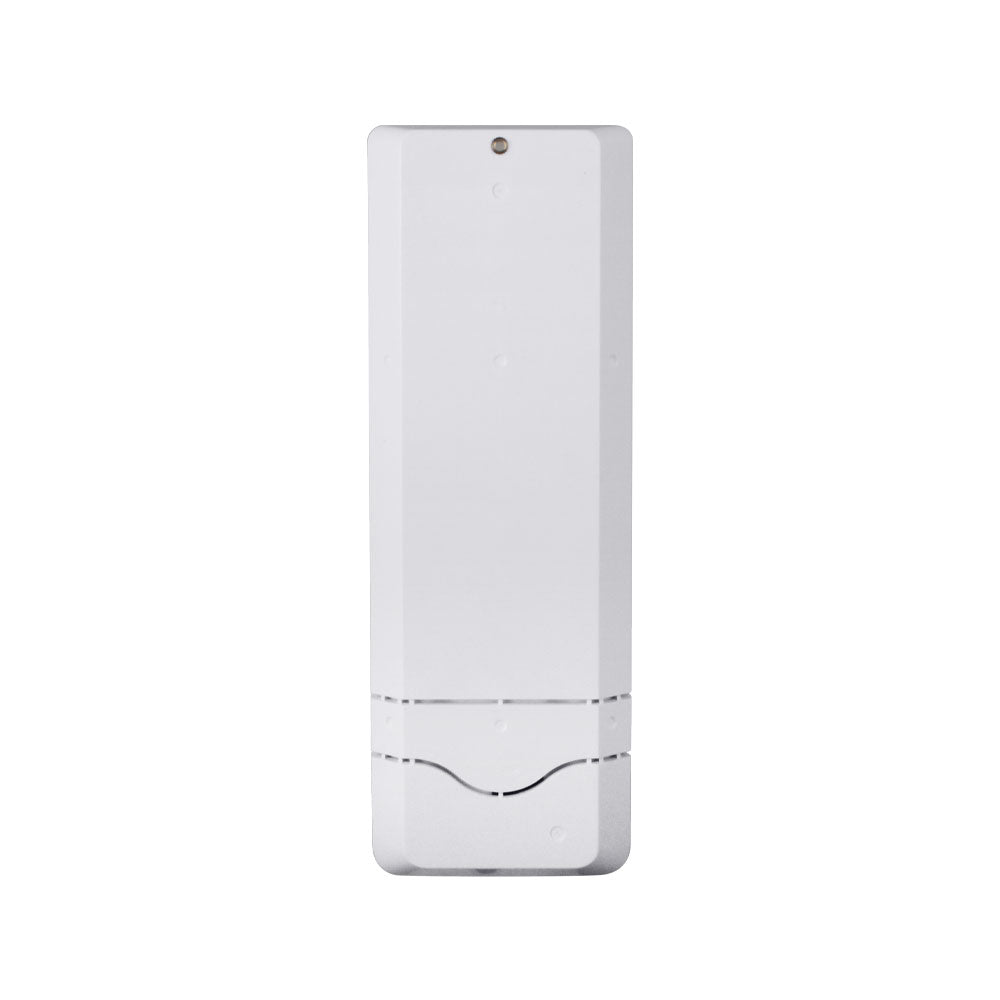

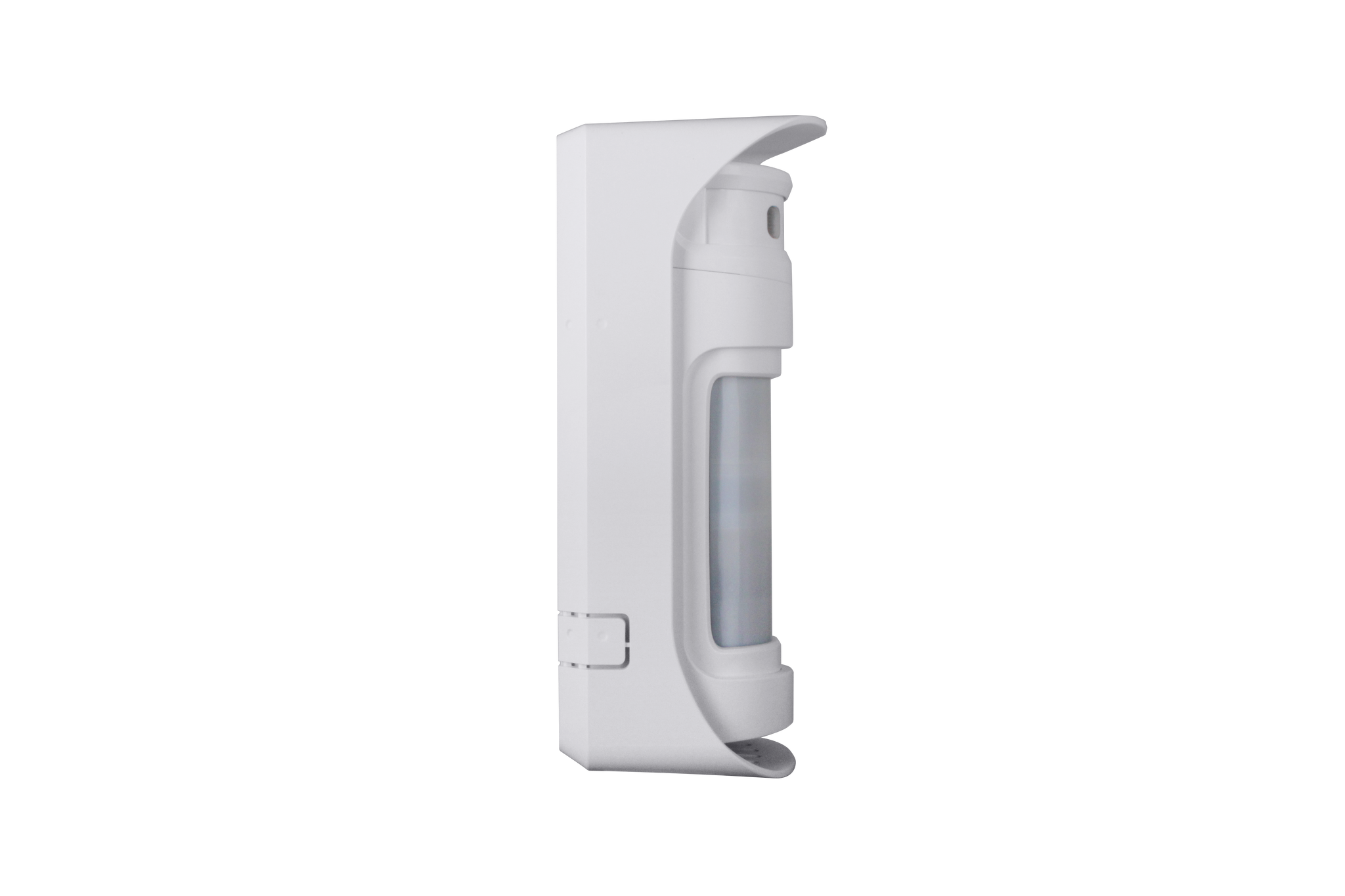

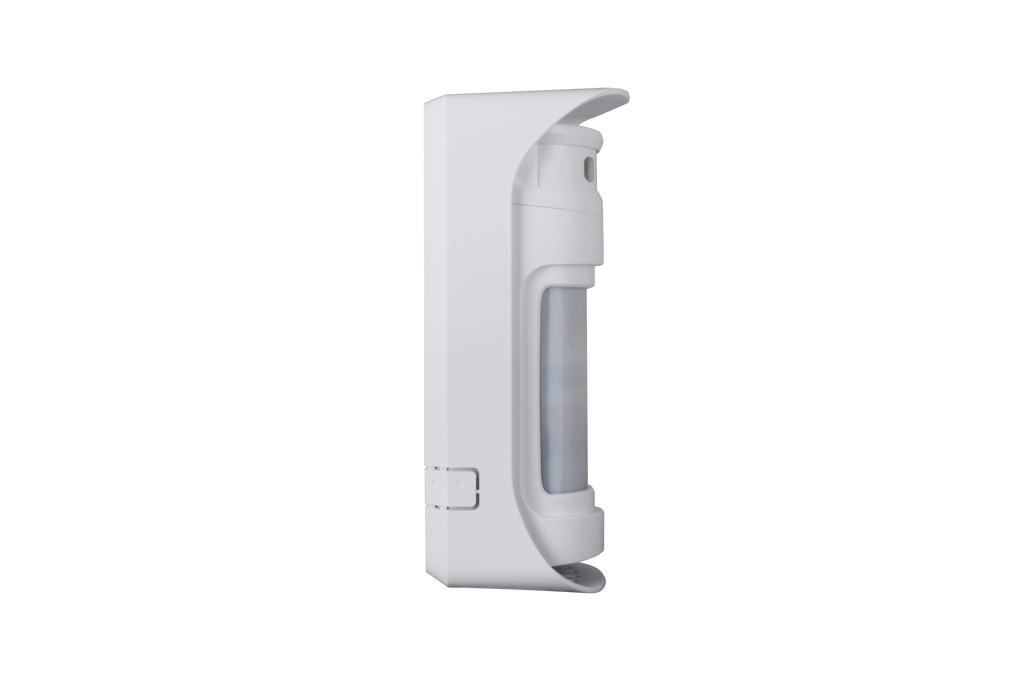

VESTA®|VESTA-370|2 YR WTY. OPTEX Outdoor PIRCam Detector, Anti-masking, Pet Immune, Grade 2 *Special order. 3-5 days lead time

✔ Outdoor PIRCam ✔ OPTEX developed ✔ 2.5–12m adjustable ✔ Anti-masking ✔ Pet immune ✔ 10m IR ✔ SF1 fast images ✔ IP55 ✔ Grade 2
SKU:
VESTA-370

Premium outdoor PIRCam verification, designed to reduce false alarms and add confidence to response.

The VESTA® VESTA-370 is an outdoor PIR motion sensor camera developed in collaboration with OPTEX and VESTA. It is designed to send wireless signals and captured alarm images to the control panel on detection, giving fast visual verification for outdoor activations and a more high-end system experience.

It uses two independent IR lenses and an adjustable detection range from 2.5 to 12 metres, with a low mounting height (0.8 to 1.2 metres) that suits perimeter and approach detection. Active IR anti-masking is designed to detect attempts to blind the detector, while pet immunity up to 25 kg helps reduce nuisance alarms. SF1 transmission supports faster image delivery, and the unit is rated IP55 and certified Grade 2.

Where it is typically used

  • Gates, backyards and side paths

    Low mounted outdoor detection with alarm images for quick confirmation.

  • Outdoor corridors and building approaches

    Perimeter-focused coverage to detect movement before entry points are reached.

  • Higher risk outdoor areas

    Anti-masking support for added confidence in tamper-prone locations.

Key Features

  • Outdoor PIRCam visual verification

    HD camera with alarm image processing options and image delivery on demand.

  • Adjustable 2.5 to 12m detection

    Five range levels with 90° coverage and rotatable angle up to 90°.

  • Active IR anti-masking

    Designed to detect attempts to block the detector.

  • Pet immunity

    Anti-pets up to 25 kg, with remote adjustment of pet immunity and sensitivity.

  • 10m IR illumination

    Infrared illumination up to 10 metres.

  • Fast SF1 image delivery

    High-speed file and image transfer for verification workflows.

Key Specifications

  • Camera viewing angle: 102°
  • Image resolution options: 720P (1280×720), VGA (640×480), QVGA (320×240)
  • Power: 4 × AA L91 lithium batteries
  • Operating temperature: -20°C to +55°C
  • Ingress protection: IP55
  • Recommended installation height: 0.8 to 1.2m

Dimensions

  • 98.5 × 276.9 × 115 mm
