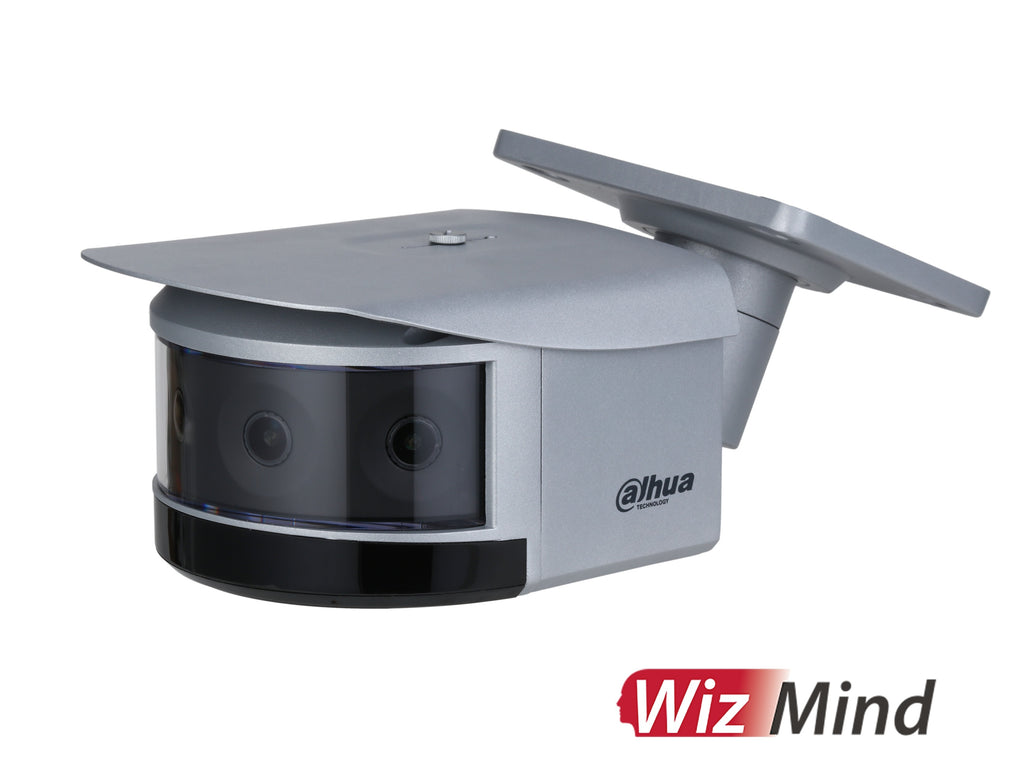

DAHUA®|IPC-PFW81642-A180|3 YR WTY. WizMind H.265+ Multi-Sensor 180 Degree Panoramic Camera, 4 x 4MP Sensors, 30m IR, AI Functions, Alarm Input/Ouput, Audio In/Out, IP67, IK10, PoE, 12Vdc/24Vac *Special order. 3-5 days lead time

The splicing camera supports a 180° panoramic view and 4-channel hardware splicing to realize HD panoramic surveillance. The camera supports crowd situation analysis, vehicle situation analysis, and perimeter protection. It is widely applied in various scenes such as
squares, airports, safe city, and traffic.

Features

• Panoramic Splicing - With advanced splicing algorithm, Dahua Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete
  panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor camera can be 180°, and the field of view of eight-sensor camera can be 360°.
• Perimeter Protection - With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such
  as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
• Vehicle Density - With deep learning algorithm, Dahua Vehicle Density technology
  analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.
• Cyber Security - Dahua network cameras employ a series of security technologies,
  including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defence against external cyber threats and prevent malicious programs from compromising the device.
• Perimeter Protection - With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such
  as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
• EPTZ - With advanced target detection and tracking algorithms, Dahua EPTZ
  technology can simultaneously zoom in and track multiple humans and vehicles that trigger alarms. It provides rich details and a panoramic view at the same time.
• Crowd Density - With deep learning algorithm, Dahua Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.

Specifications

• Four 4-MP 1/1.8" CMOS image sensors, low luminance, and high definition image.
• Outputs max. 16 MP (5520 × 2700)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Three streams for HD video display.
• Built-in IR LED, and the max. illumination distance is 30 m.
• 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
• 12 VDC/24 VAC/PoE power supply, easy for installation.
• IP67 and IK10 protection.
