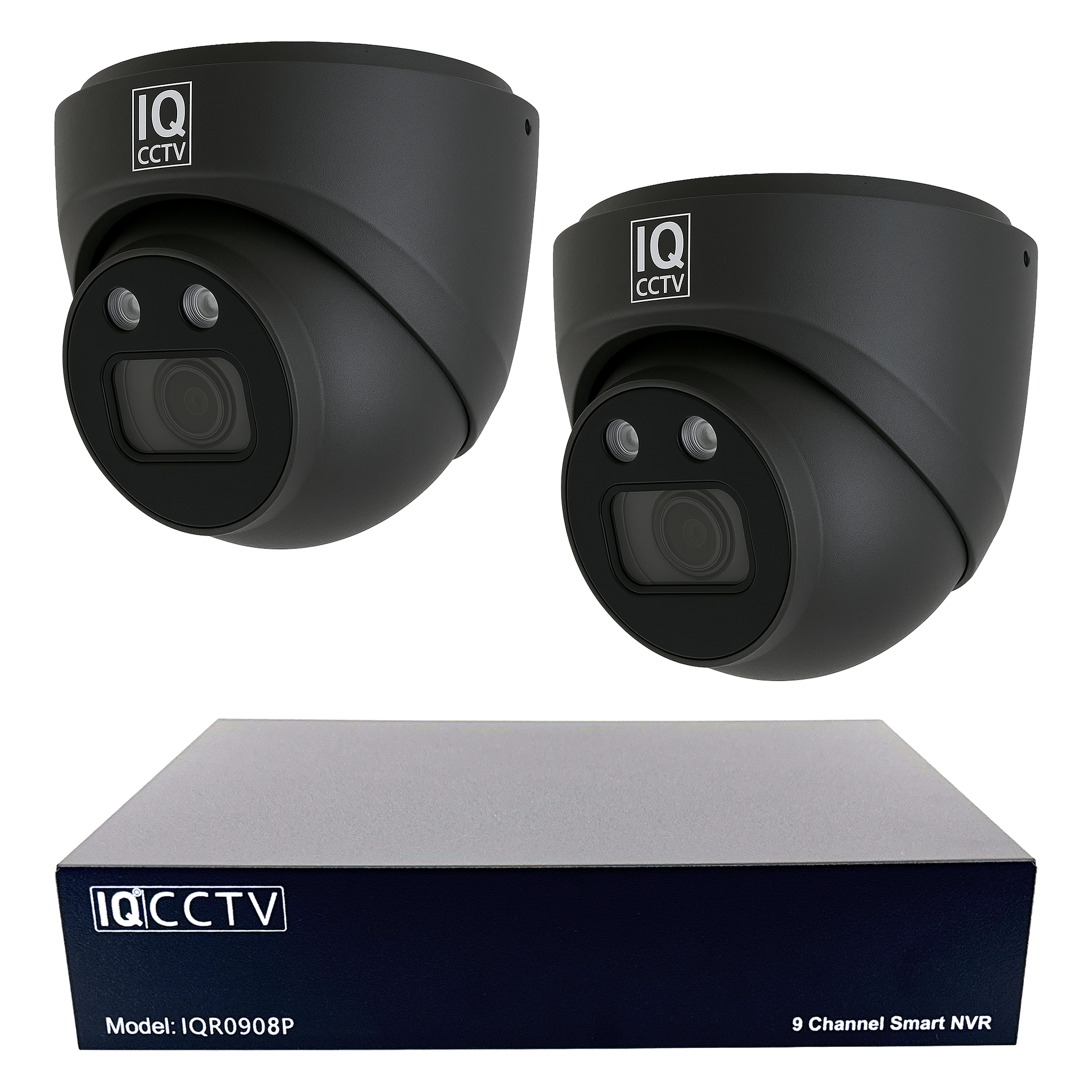

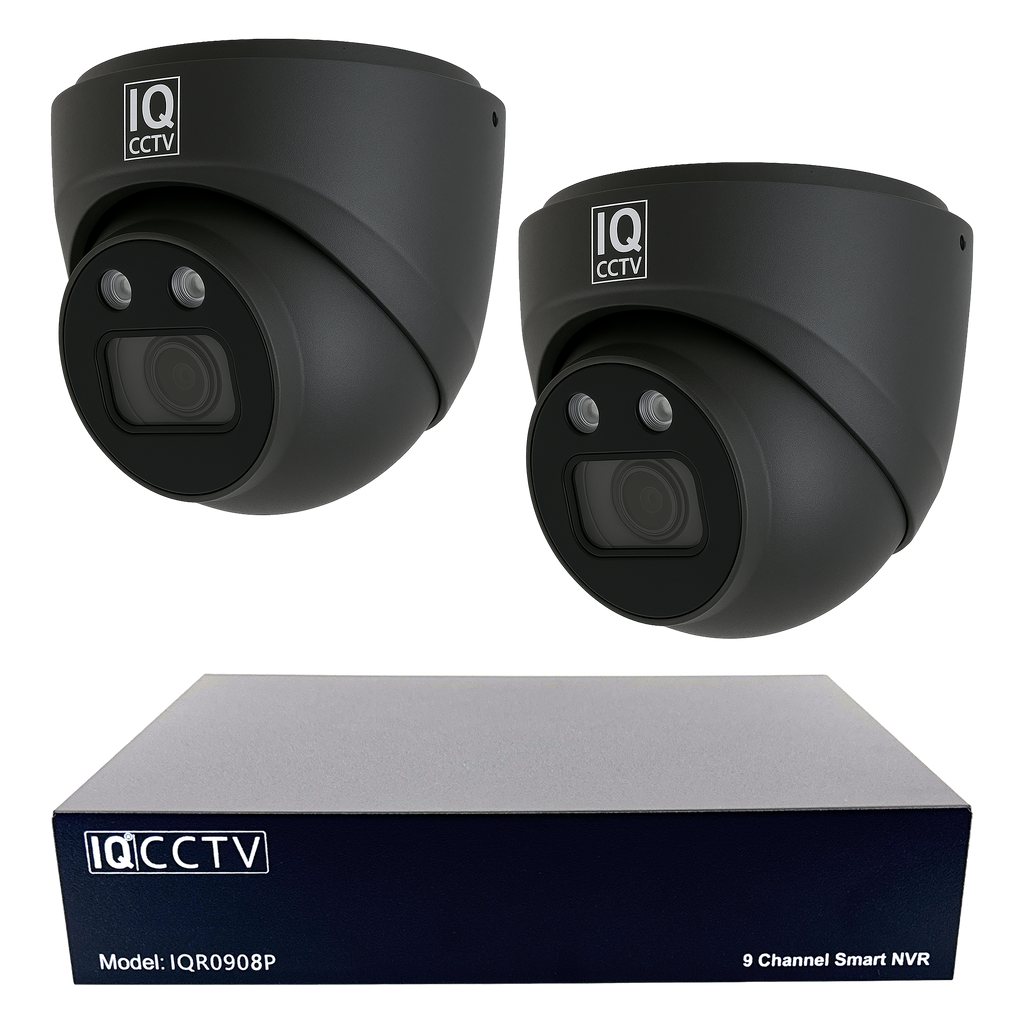

IQCCTV®|IQK02DMB|1 YR WTY. 2 camera 8MP/4K IP 5x Zoom Dome CCTV Kit, Smart AI, Active Deterrent, 20m cable per camera, 9 channel NVR, NDAA

✔ Easy Install ✔ Sony® Starvis ✔ 5× Zoom ✔ 30m Colour, 60m IR ✔ Mic
SKU:
IQK02DMB
Hard Drive

Product Overview

A complete 2 camera 4K IP CCTV system engineered for professional installation. Designed for installers, small to medium commercial premises, and demanding residential installations where fixed lens kits will not adapt to changing requirements.

Why motorised zoom matters

Most consumer CCTV kits use fixed lens cameras with one permanent angle. Once installed, if the field of view needs adjusting, you are pulling ladders out. The IQK02DMB's 5x optical zoom (2.7 to 13.5mm) lets you adjust each camera's field of view remotely from the IQCCTV mobile app or NVR interface. Pull wide to 103 degrees for full area coverage, or zoom tight to 29 degrees for number plate capture and facial detail. Full 4K resolution is preserved at every zoom level with no digital cropping and no quality loss.

Smart AI that actually reduces false alerts

Traditional motion detection triggers on any pixel change. Every passing car, falling leaf or stray cat generates an alert. This kit's Smart AI classifies what it sees before triggering, distinguishing humans and vehicles from environmental movement. Six detection modes let installers configure the system for the specific use case rather than relying on generic motion sensing:

  • Intrusion Detection up to 4 zones, 1 to 10 second trigger sensitivity, human and vehicle classification
  • Line Crossing Detection 4 virtual tripwires with directional detection (in, out or both ways)
  • Loitering Detection 4 zones, 1 to 10 minute threshold, ideal for entrances and restricted areas
  • People Gathering density monitoring with adjustable thresholds, useful for retail and hospitality
  • Region Entrance and Exit directional zone monitoring with person and vehicle classification
  • Motion Detection standard pixel change detection with human filtering

Professional grade hardware throughout

Every camera in this kit uses a Sony® Starvis™ image sensor, delivering clean low light imagery down to 0.005 Lux. Dual light night vision combines up to 60m of infrared illumination with up to 30m of warm white LED for full colour night recording. Active deterrent mode triggers flashing white lights when AI analytics detect an intrusion. Metal housings rated IP67 for permanent outdoor installation from minus 20°C to plus 60°C.

Who this kit suits

Suitable for domestic properties, small retail premises, offices, warehouses, workshops, forecourts, and commercial yards. Particularly well suited to installations where the required field of view may change over time, where multiple areas need different zoom levels from similar camera positions, or where number plate and facial detail is needed at range.

Kit Summary

  • Cameras 2 x IQC08DMB
  • Recorder IQR0908P 9ch
  • PoE Ports 8
  • Cables 2 x 20m Cat5e
  • Max Resolution 8MP / 4K
  • Expandable to 9 cameras
  • Warranty 1 Year UK

Suitable Applications

  • Professional installers
  • Small to medium commercial
  • High end residential
  • Retail and hospitality
  • Yards, forecourts, car parks
  • Flexible field of view installs

Need Help Specifying?

UK based technical support for installers and end customers. Specifying CCTV since 2000.

020 8689 9999

Mon to Fri 9:00 to 17:00
enquiries@y3k.com

Real Footage, Unedited

Recorded directly from the IQC08DMB camera in commercial and residential installations. No post processing, no enhancement, just what the camera captures. This is what your customer will see.

📷 Daytime Commercial. 4K resolution in a commercial environment.

📷 Daytime Residential. 4K resolution on a residential property.

🌙 Night Commercial. Colour night vision in a commercial environment.

🌙 Night Residential. Colour mode on a residential property with white LED only.

What's in the Kit

Everything needed to install a complete 2 camera system supplied in one box. Hard drive is optional. Choose a size above, or supply your own surveillance grade SATA drive up to 8TB.

Cameras (x2)

  • 2xIQC08DMB 4K 8MP 5x Motorised Zoom Dome Camera (Dark Grey, Metal)
  • 2xDrill templates
  • 2xWaterproof RJ45 connector sets
  • 2xHex / Allen keys
  • 2xMounting screw & wall plug sets
  • 2xQuick start guides

Recorder

  • 1xIQR0908P 9 Channel Smart AI NVR, 8 PoE Ports
  • 1xMains power supply (DC48V)
  • 1xUSB mouse
  • 1xHDD mounting hardware
  • 1xHDD SATA & power cable
  • 1xQuick start guide

Cables, Signage & Warranty

  • 2x20m Cat5e pre terminated network cables
  • 1xOutdoor weatherproof "CCTV in Use" sign
  • 1xIndoor self adhesive window decal
  • 1x1 Year UK warranty card

Full Specifications

Complete technical data for specifiers, installers and integrators. Every specification verified and tested in house.

IQC08DMB Camera (x2)

Resolution 4K 8MP (3840 x 2160)
Image Sensor Sony® Starvis™ 1/2.8"
Lens 5x Motorised, 2.7 to 13.5mm autofocus
Field of View 29 to 103 degrees horizontal
Min. Illumination 0.005 Lux colour / 0 Lux with LEDs
IR Night Vision Up to 60m
Colour Night Vision Up to 30m (warm white LED, 4000K)
Wide Dynamic Range 120dB True WDR
Compression H.265+, H.265, H.264+, H.264, MJPEG
Audio Built in microphone (G.711A/U)
Smart AI Modes 6 (intrusion, line crossing, loitering, gathering, region, motion)
AI Classification Human and Vehicle
ONVIF Profile S/T (v19.12)
Power PoE IEEE 802.3af or 12V DC ±10%
Local Storage MicroSD up to 256GB (optional)
IP Rating IP67 Weatherproof
Housing Metal, Dark Grey Powder Coated
Dimensions Ø115 x 113mm
Weight 600g per camera
Operating Temperature -20°C to +60°C (RH 95% max)
Compliance NDAA, PSTI, CE, UKCA, FCC, RoHS

IQR0908P NVR

Channels 9 IP channels (up to 8MP / 4K per channel)
PoE Ports 8 x IEEE 802.3af (30W per port, 72W total)
HDD Support 1 x SATA up to 8TB
Compression H.265+, H.265, H.264+, H.264
Recording Modes Manual, Timer, Motion, Smart Event
HD Output 1 x HDMI (1920x1080, 1280x720)
Display Modes 9, 8, 6, 4, 1 channel splits
Network 1 x RJ45 10/100Mbps
Bandwidth 72Mbps incoming / 48Mbps outgoing
Remote Access iOS, Android, Web, Windows, macOS
Protocols TCP/IP, HTTP(S), RTSP, DDNS, ONVIF, P2P
USB 2 x USB 2.0
Power Supply DC48V, ≤6W (without HDD / PoE load)
Dimensions 200 x 175 x 40mm
Weight 1.5kg (without HDD)
Operating Temperature -10°C to +50°C

Compliance and Certification

Fully compliant with UK, EU and international standards for security equipment. Approved for commercial, government and regulated environments where non compliant equipment cannot be specified.

NDAA
U.S. Govt
Section 889
PSTI
UK Product
Security 2022
CE / UKCA
EU & UK
Safety / EMC
FCC
U.S. Radio
Standards
RoHS
Hazardous
Substances
ONVIF S/T
Open
Standards

IQCCTV vs Consumer Box Kits

Cameras at similar price points on marketplace websites look similar in photographs. The differences become clear when you compare what is actually in the box, what it is made of, and what happens when something goes wrong.

Feature IQCCTV IQK02DMB Typical Consumer Kit
Lens type 5x Motorised Zoom Fixed 2.8mm
Image sensor Sony® Starvis™ Generic CMOS
Night vision range 60m IR + 30m Colour 30m IR typical
AI detection modes 6 inc. loitering and line crossing Person and vehicle only
Active deterrent ✓ Flashing white light Not included
On camera MicroSD backup ✓ Up to 256GB Not included
Camera housing Metal, IP67 Plastic, IP66
NDAA compliant ✓ Approved for government Not compliant
ONVIF open standard ✓ Profile S/T Proprietary or limited
Cloud subscription required No, all features unlocked Often required
Technical support UK phone and email Overseas email only
Warranty claim process UK RMA, direct replacement Return to overseas seller

Storage and Recording Times

Estimated 24/7 continuous recording duration with 2 cameras at 4K using H.265+ compression. Activity based recording (motion or Smart AI triggered) typically extends these durations by 3 to 5 times.

1TB
≈ 7 days
Activity: 2 to 4 weeks
2TB
≈ 14 days
Activity: 1 to 2 months
4TB
≈ 30 days
Activity: 2 to 4 months
8TB
≈ 60 days
Activity: 4 to 8 months

For detailed calculations based on bitrate, camera count and recording mode, see our Recording Time Calculator.
