VESTA®|VESTA-028|2 YR WTY. Wireless Input Output Module (1 DI / 1 DO) *Special order. 3-5 days lead time

✔ 1 input ✔ 1 output ✔ NO/NC loops ✔ 5V to 12V DC ✔ Backup battery option ✔ Remote configuration
SKU:
VESTA-028

Bring wired devices into the VESTA ecosystem, and trigger automation from real-world inputs.

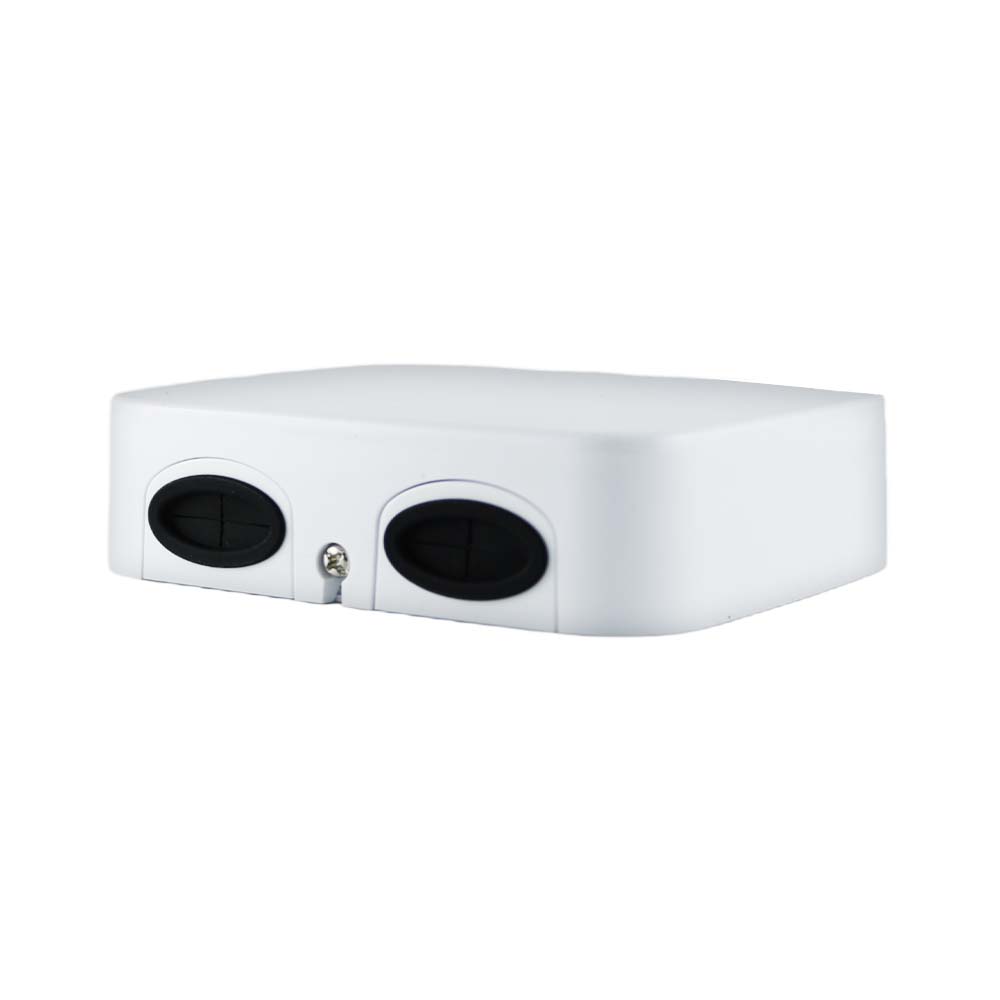

The VESTA® VESTA-028 is a wireless digital input and output module designed to integrate hardwired devices into a VESTA system. It provides one digital input and one digital output, so you can turn a wired signal into a system event, and switch a wired device on command.

This is ideal for installations where you want VESTA rules and automation to react to a physical input (for example a switch or sensor), or where you want the system to control an external device via an output. Remote configuration support helps keep setup consistent.

What it’s used for

  • Turn a wired input into a trigger

    Use the digital input to create an event trigger from a connected wired device.

  • Control a device from the system

    Use the digital output to switch a connected device as an event responder.

  • Improve flexibility on takeovers

    Useful when you need to keep or reuse hardwired devices but want the system to be VESTA-managed.

Key Specifications

  • RF frequency: 868MHz
  • Inputs/outputs: 1 digital input, 1 digital output
  • Dry contact input: NO or NC loops
  • Output rating: up to 2A at 30V DC or 0.5A at 125V AC
  • Power: 5V to 12V DC
  • Backup battery: 3 × CR123 or 2 × L91 AA (model dependent)
  • Operating temperature: -10°C to +45°C
  • Relative humidity: up to 85% (non-condensing)
  • Dimensions: 111 × 91 × 29 mm
