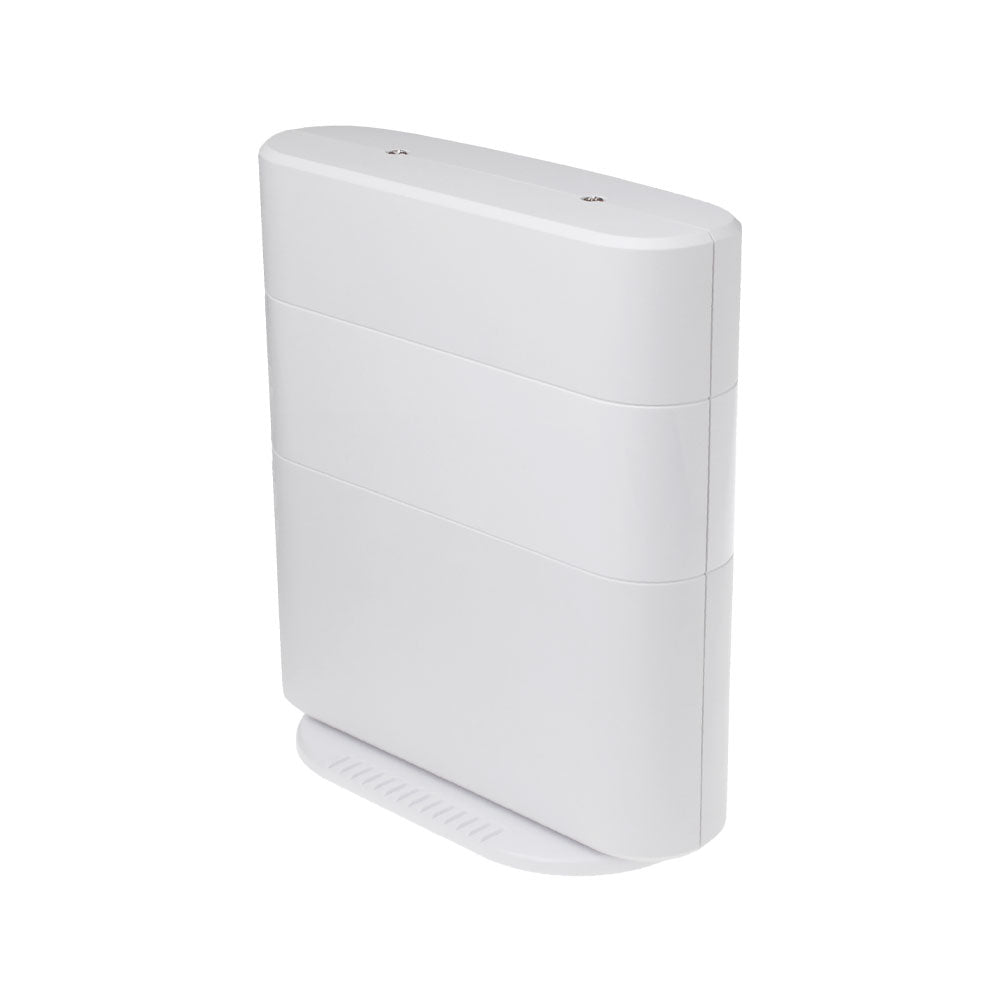

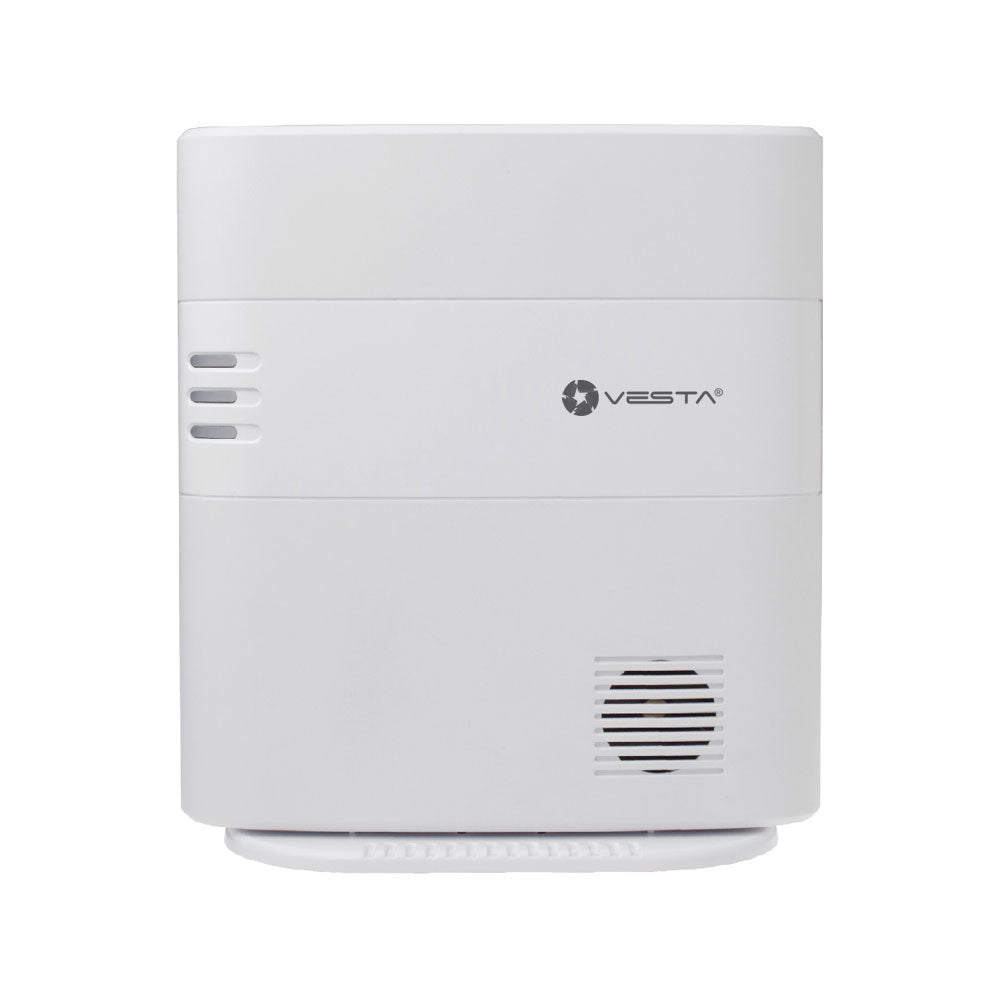

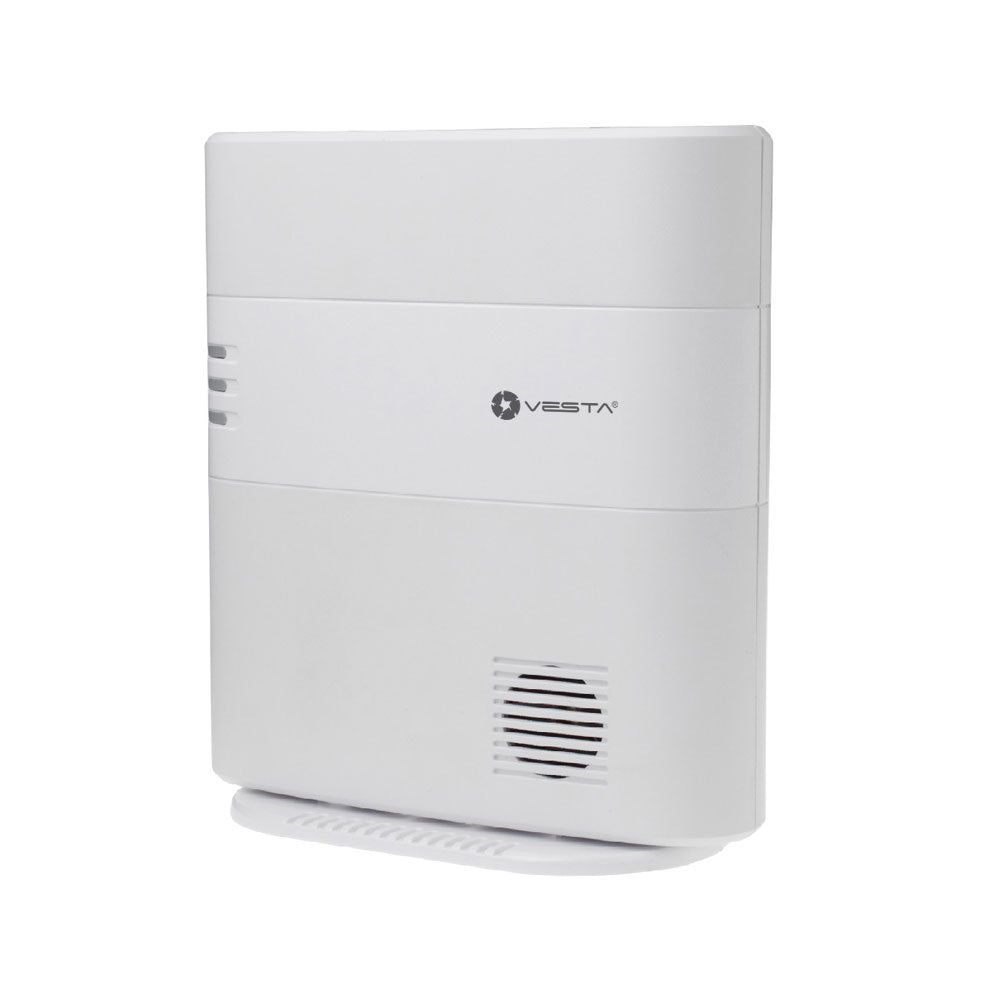

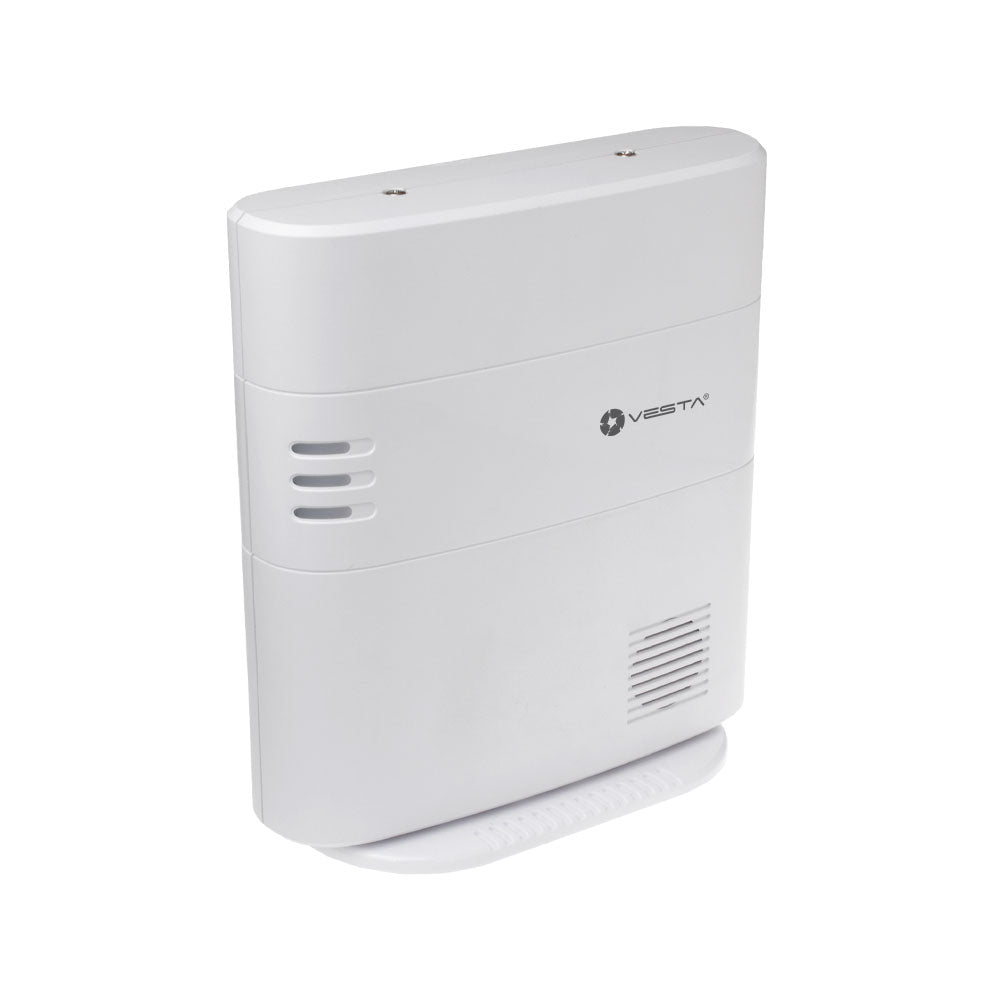

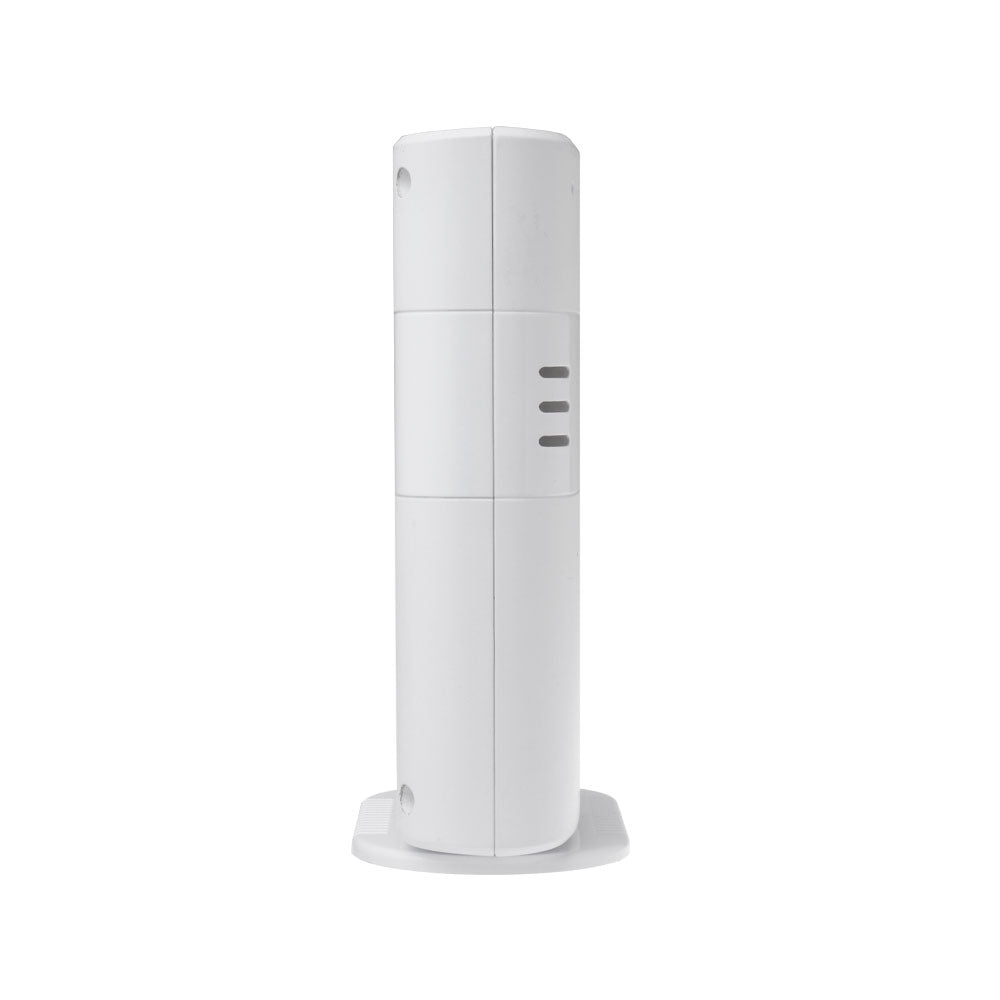

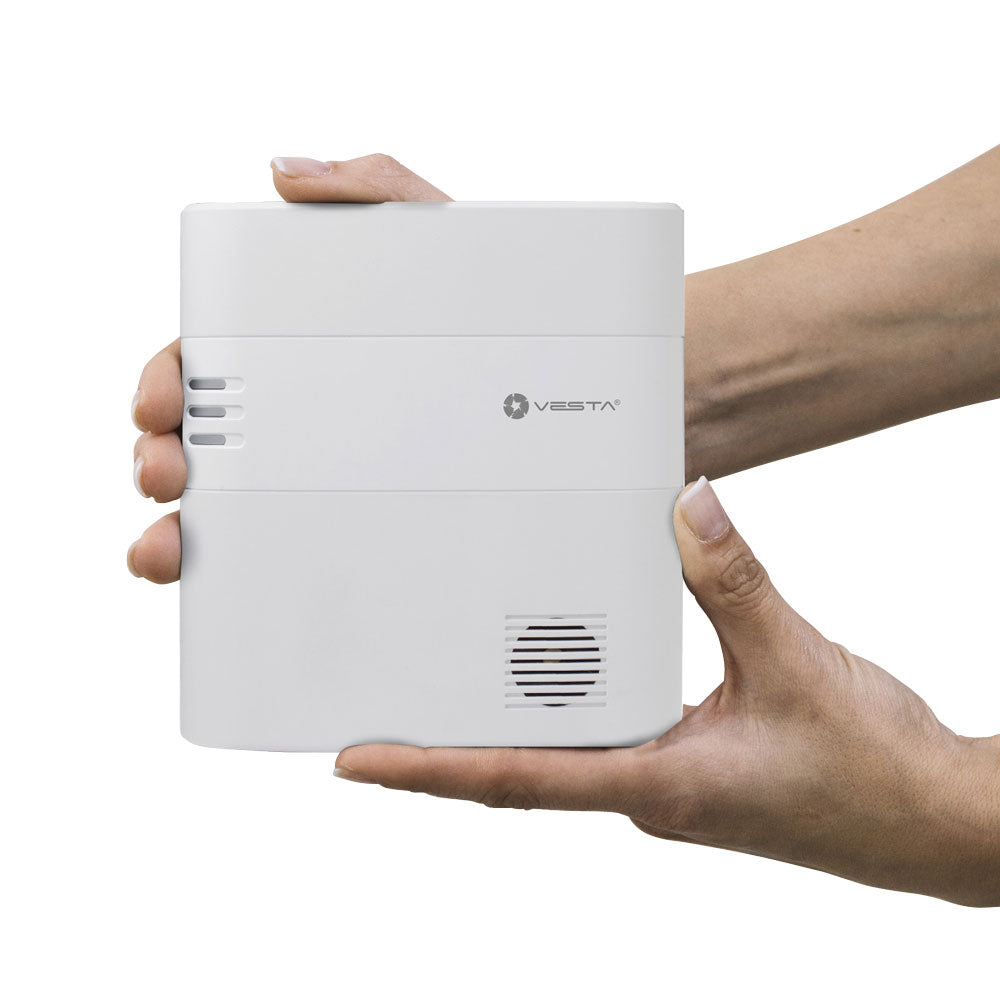

VESTA®|VESTA-047NNZ-SF1-W|2 YR WTY. Grade 2 IP + 4G Control Panel with WiFi *Special order. 3-5 days lead time

✔ Grade 2 ✔ IP + 4G ✔ WiFi ✔ 640 zones ✔ 8 partitions ✔ Built-in siren ✔ SmartHomeSec app ✔ Visual verification
SKU:
VESTA-047NNZ-SF1-W

A high-spec Grade 2 VESTA hub with IP, 4G and WiFi, built for a premium SmartHomeSec experience.

The VESTA® VESTA-047NNZ-SF1-W is designed for installations where you want reliable signalling and a modern user experience, without being limited by router access on site. It combines IP and 4G connectivity with WiFi capability, giving flexible placement and a cleaner commissioning experience.

In everyday use, the SmartHomeSec app keeps control simple, with remote management and event notifications. For higher-end installs, the SmartSeries platform supports up to 640 radio zones across 8 partitions and includes live visual verification support with compatible devices, making it suitable for premium residential and multi-area small commercial systems.

Why it works for homes and small businesses

  • Stay connected in more situations

    IP and 4G provide robust communications, while WiFi adds flexibility where Ethernet is not convenient.

  • Easy day-to-day control

    SmartHomeSec supports remote management and clear notifications so the system feels modern and intuitive.

  • Confidence through verification

    Supports live visual verification with compatible devices for faster confirmation of events.

How it fits into the VESTA ecosystem

  • SmartHomeSec app + web programming

    Supports programming and management via web and app, with push notification reporting options.

  • Scales with the site

    High zone, partition and user capacity supports both straightforward installs and larger projects without changing platform.

  • Smart integrations

    Supports home automation features and is listed as compatible with Google Home and Alexa.

Key Features

  • Grade 2 SmartSeries platform

    EN50131 Grade 2, designed for professional wireless installs.

  • IP + 4G connectivity

    Built-in TCP/IP and 4G communications for reliable reporting.

  • WiFi capability

    WiFi support is included for more flexible installation and commissioning.

  • High capacity system

    Up to 640 radio zones, 8 partitions, 240 users.

  • Built-in siren

    Integrated 95dB siren for local alarm indication.

  • Visual verification support

    Supports HD transmission devices (PIRCAMS) with SF1 protocol and live visual verification.

Key Specifications

  • Zones: 640 radio zones
  • Partitions: 8
  • Users: 240
  • Wireless frequency: 868MHz
  • Power supply: 12V, 1A
  • Operating temperature: -10°C to +45°C
  • Relative humidity: up to 85% (non-condensing)

Dimensions

  • Control panel: 140 × 150 × 42 mm
  • WiFi adapter: 20 × 15 × 8 mm
