VESTA®|VESTA-051|2 YR WTY. Indoor Curtain PIR Motion Sensor, 10m, Grade 2 *Special order. 3-5 days lead time
✔ Curtain PIR ✔ 10m range ✔ 10° curtain pattern ✔ Wall or ceiling mount ✔ Tamper ✔ 5 year battery life ✔ Grade 2
Discreet curtain detection for windows, doors and skylights, without filling the room with sensors.

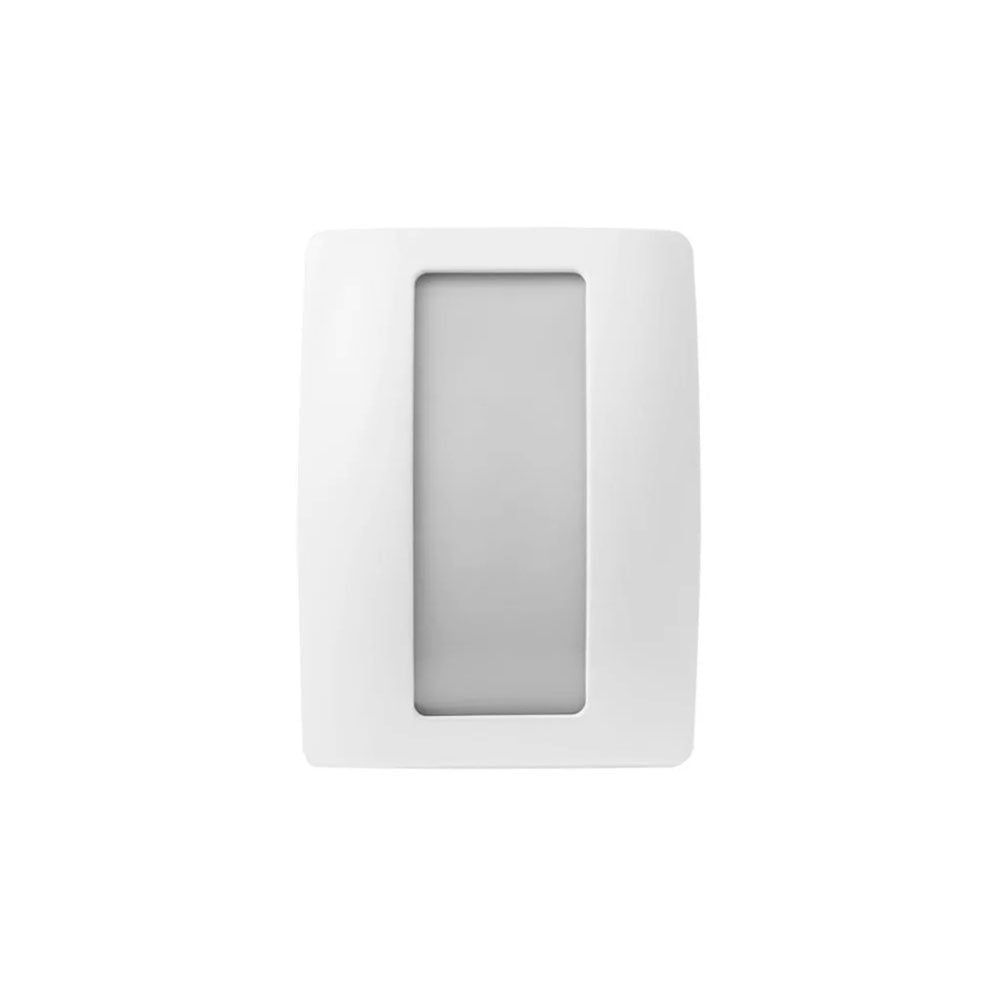

The VESTA® VESTA-051 is an indoor curtain PIR motion sensor designed to protect openings with a narrow detection pattern, ideal for windows, doors, roof hatches and skylights. It delivers up to 10m coverage and can be mounted vertically or horizontally on a wall, or mounted on a ceiling depending on the application.
To help maintain battery life, the sensor uses a sleep timer after an activation and supports supervision signals for system integrity. Tamper protection and low battery detection support reliable day-to-day operation in a VESTA Grade 2 system.
Key Features
-
Curtain detection pattern
Designed to detect movement across a narrow curtain field, supporting perimeter-style indoor protection. -
Flexible mounting
Wall mount (vertical or horizontal) or ceiling mount depending on coverage required. -
Battery efficiency and integrity
Sleep timer behaviour plus optional supervision signals to help preserve battery and verify device health. -
Installer protection features
Tamper protection and low battery detection.
Key Specifications
- Coverage: up to 10m
- Detection pattern: 10° x 110°
- Battery: 1 x 3V CR123A lithium
- Operating temperature: -10°C to +45°C
- Grade: Grade 2
Dimensions
- 56 (W) x 76 (H) x 43 mm
