VESTA®|VESTA-206N|2 YR WTY. AC Relay Controller (5A SPDT) for VESTA Automation *Special order. 3-5 days lead time

Control wired devices from your VESTA system, using a proper AC powered 5A relay.

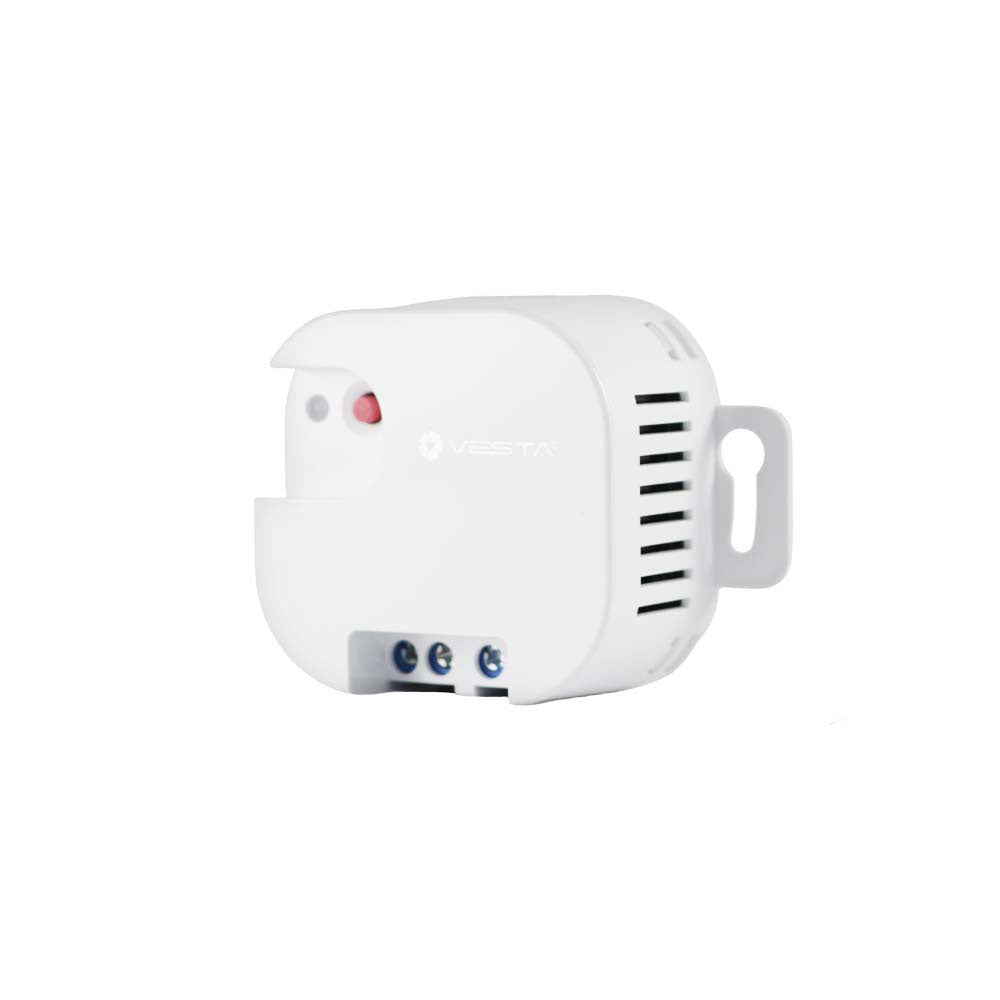

The VESTA^® VESTA-206N is an AC powered relay controller designed to bring wired devices into the VESTA ecosystem. It provides a potential free SPDT relay so you can switch loads such as gates, sprinklers, valves or other controlled circuits, then trigger and automate them from the control panel programming.

Once learned into a compatible VESTA control panel, the relay can be switched remotely from the panel webpage, and relay status is indicated by the on-board LED. Screw terminals provide a tidy installation method, and the module supports supervision signalling after learn-in.

Key Features

• SPDT relay output with 5A load

  Potential free SPDT relay with maximum load stated as 5A.

• AC power input

  Operates on 110 to 230V AC power.

• Designed for automation events

  Relay activation can be integrated into other automation activities.

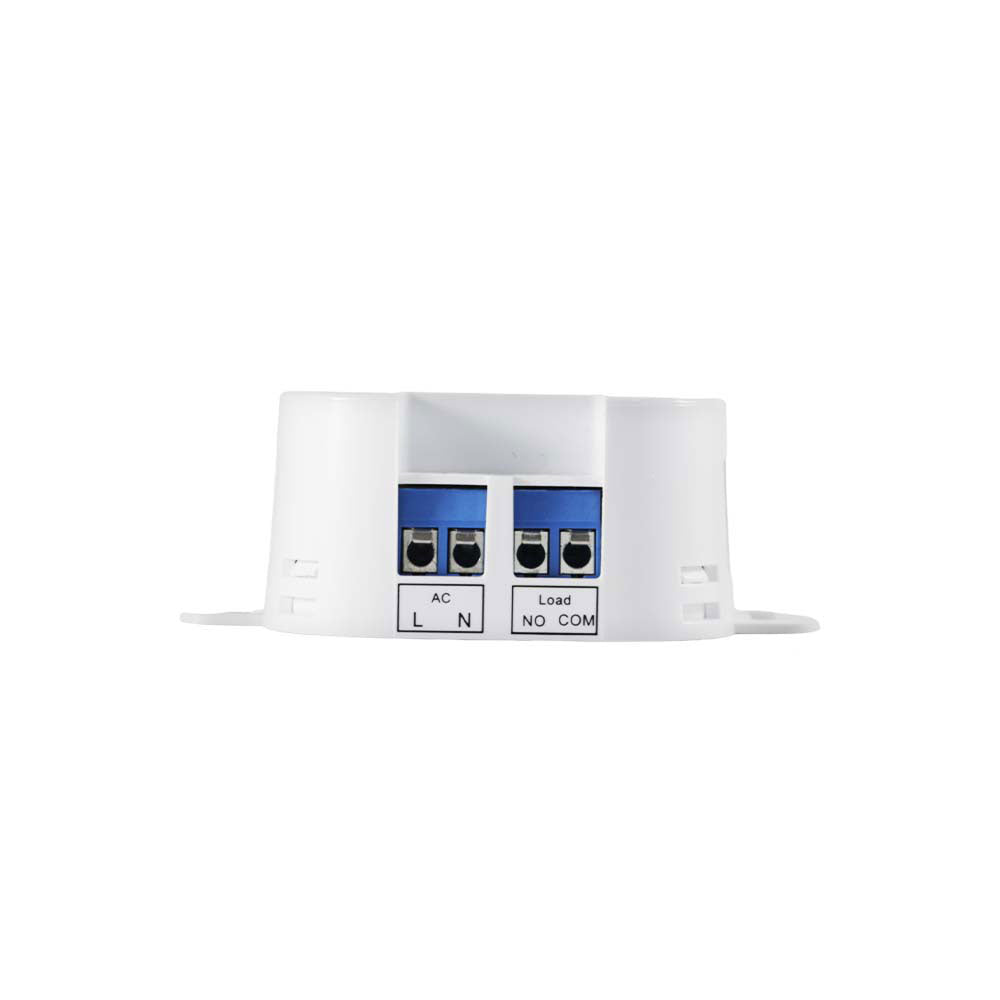

• Screw terminals

  Easy and secure wiring via terminals.

• System integrity support

  Supervision behaviour after learn-in.

Key Specifications

• Protocol: F1
• RF frequency: 868MHz
• Power source: 100–240V AC (external power)
• Operating temperature: -10°C to +45°C
• Operating humidity: up to 85% (non-condensing)

Dimensions

• 71 × 49 × 26 mm
