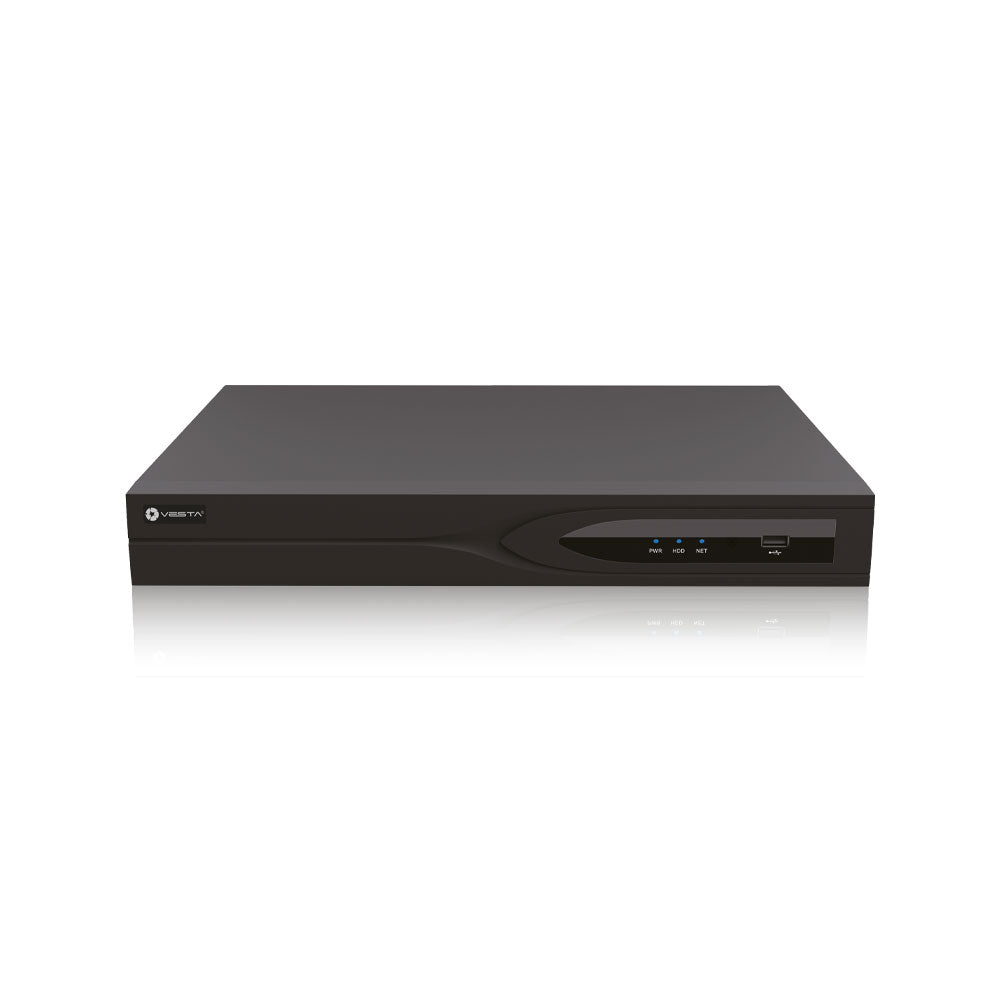

VESTA®|NVR6232S-IO-PRO|2 YR WTY. 32 channel Pro AI Series Plus NVR with dual HDMI *Special order. 3-5 days lead time

✔ 32 IP channels ✔ Dual HDMI outputs ✔ Records up to 8MP ✔ 2 SATA up to 14TB ✔ Onvif
SKU:
NVR6232S-IO-PRO

32 channel NVR with dual HDMI outputs for flexible monitoring.

The VESTA® NVR6232S-IO-PRO is a 32 channel NVR supporting H.265 and H.264 compression and recording resolution up to 8MP.

It provides dual HDMI outputs plus VGA, dual SATA storage up to 14TB each (sold separately), and Onvif support.

Key Features

  • Dual HDMI outputs

    2 HDMI (4K) and VGA (1080P) outputs.

  • 32 channel capacity

    Supports 32 IP channels with up to 8MP recording.

  • High bandwidth

    256 Mbps in and out bandwidth.

  • Storage

    2 SATA HDD up to 14TB each (sold separately).

  • USB ports

    2× USB 2.0 and 1× USB 3.0 ports.

Key Specifications

  • Channels: 32 IP channels
  • Compression: H.265 and H.264
  • Recording: up to 8MP (3840×2160)
  • Bandwidth: 256 Mbps in, 256 Mbps out
  • Outputs: 2 HDMI (4K) and VGA (1080P)
  • Storage: 2 SATA HDD up to 14TB each (sold separately)
  • Power supply: 110V to 220V AC (±10%), 47 to 63Hz

Dimensions and Weight

  • Dimensions: 360 (W) × 48 (H) × 311.5 mm
  • Weight: 3 kg
